20x40 Feet Residential Commercial Building Plan AutoCAD DWG file

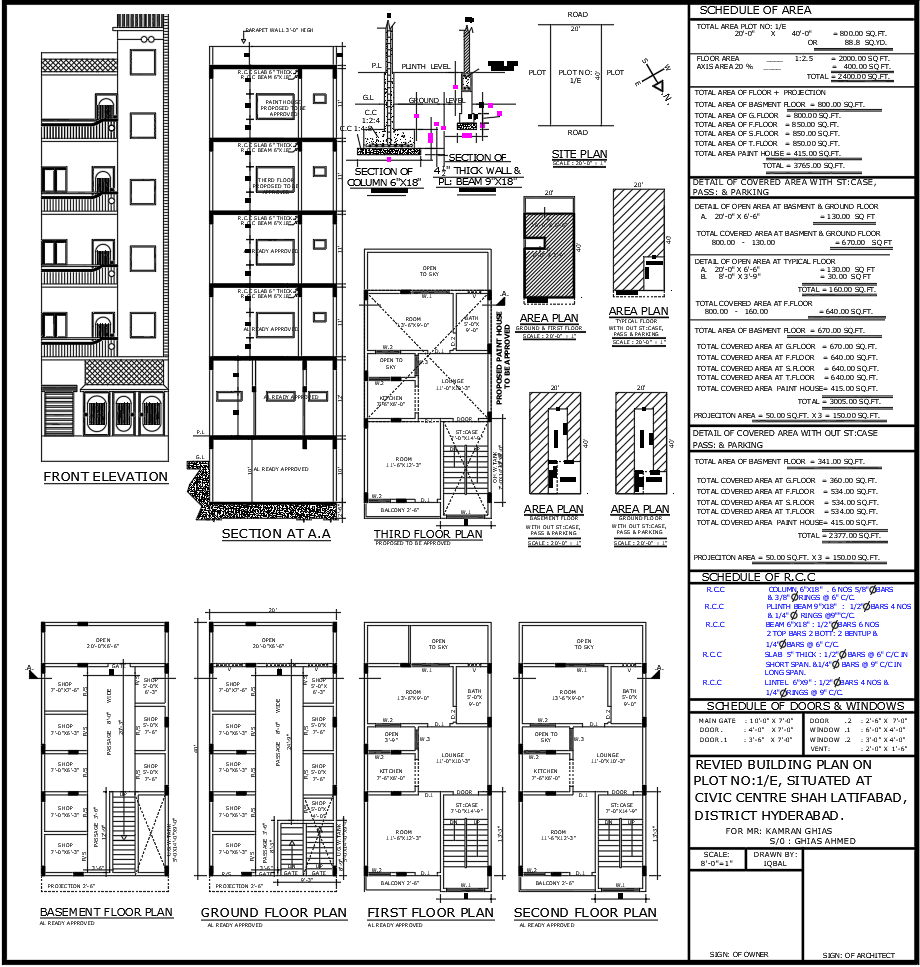

This AutoCAD DWG drawing presents a revised residential and commercial building plan on a 20x40 feet (800 sq.ft) plot located in Shah Latifabad, Hyderabad. The detailed layout includes basement, ground, first, second, and third-floor plans along with front elevation, section, RCC schedule, and door-window details. Each level plan highlights accurate room dimensions, wall thickness, and structural details designed for urban mixed-use buildings.

The ground floor layout features shops sized 7’-0”x6’-3” and 5’-0”x7’-6”, while upper floors include bedrooms (13’-6”x9’-0”), lounges (11’-0”x10’-3”), kitchens (7’-6”x6’-0”), and balconies (2’-6”). The drawing also incorporates staircase design (7’-0”x14’-9”), column section (6”x18”), RCC beam and slab detailing, and total covered area calculations up to 3765 sq.ft.

Key Highlights:

• Comprehensive multi-floor plan covering basement to roof.
• Front elevation and sectional view (A-A) with full RCC schedule.
• Site plan and area schedule including open space and projection areas.
• Suitable for architects, civil engineers, and builders working on residential and commercial mixed-use projects.
• Fully editable DWG format compatible with AutoCAD, Revit, and SketchUp.
