Ceramic Kitchen Counter Layout Drawing with Standard 85cm Height

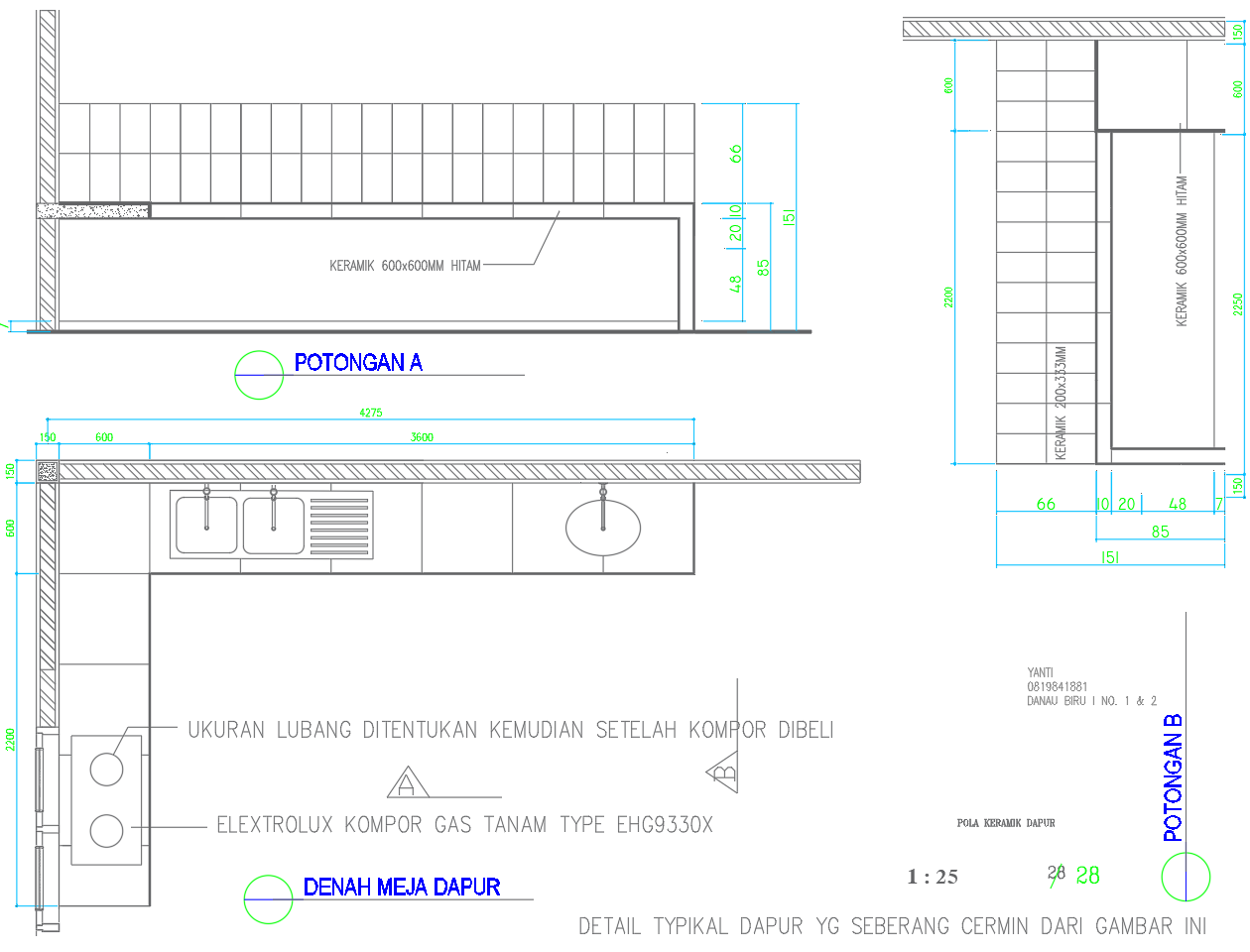

This AutoCAD DWG file shows a detailed modern kitchen counter layout with precise planning and clear construction information. The drawing includes a complete denah meja dapur along with sectional views Potongan A and Potongan B, allowing an accurate understanding of height, depth, and material placement. The kitchen counter is designed with a finished working height of 85 cm, ensuring ergonomic use for residential kitchens. The layout also defines counter depth, backsplash height of 66 cm, and full ceramic wall coverage up to 210 cm, providing a clean and structured modular kitchen design suitable for contemporary interiors.

The drawing specifies ceramic finishes using 600x600 mm black tiles for wall surfaces and 200x333 mm ceramic patterns for vertical detailing, clearly shown in elevation and section views. Sink positioning, drainage layout, and built-in gas stove placement are accurately marked, including provision for the Electrolux gas stove type EHG9330X. All dimensions are annotated for cabinetry, countertop thickness, and support structure, making the file practical for execution and coordination. This editable AutoCAD DWG file is ideal for architects, interior designers, civil engineers, and builders working on residential kitchen planning, detailing, and documentation projects requiring accurate measurements and professional drafting standards.
