Luxury Hotel Upper Floor Architectural Planning with Guest Room Layout

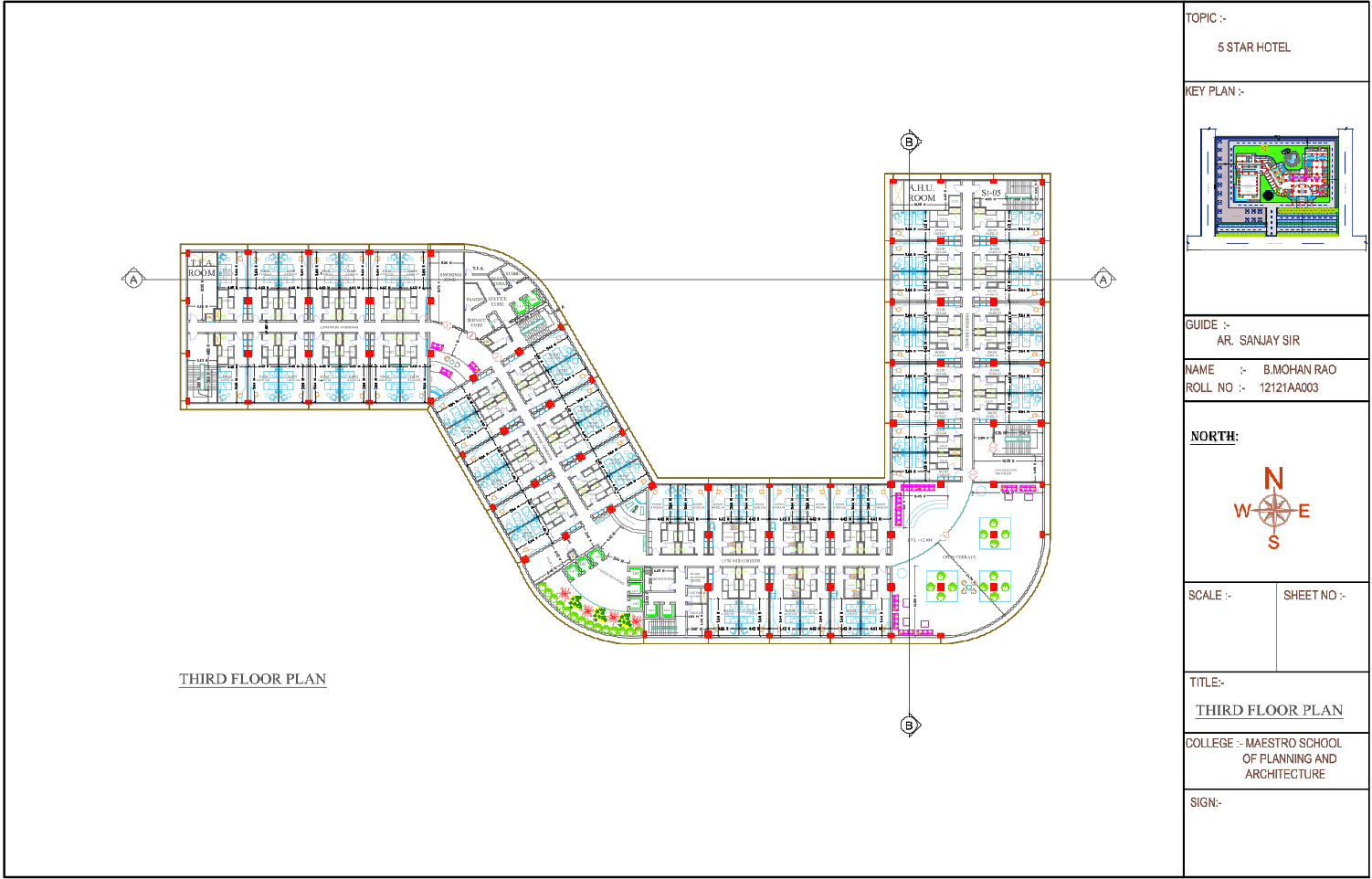

This detailed 5-star hotel third-floor plan AutoCAD drawing provides a complete architectural layout featuring guest rooms measuring 4.43x5.64m, 4.42x5.64m, and 5.64x4.43m, wide 1.57m corridors, service cores, lifts, housekeeping rooms, AHU rooms, toilets, banquet areas, and semi-open gazebos. Designed for professional use, this drawing supports architects, civil engineers, interior designers, and builders in understanding accurate hotel planning, circulation flow, structural zoning, and guest service arrangements.

Key Highlights of the Drawing

• Complete Third Floor Plan Layout with clear circulation and zoning
• Guest room arrangements (4.43x5.64m, 4.42x5.64m, 5.64x4.43m) marked precisely
• 1.57m wide corridor system ensuring smooth movement
• Multiple lift cores and service areas for efficient hotel operations
• AHU room, pantry, electrical rooms, FHC points, service cores clearly detailed
• Semi-open gazebos, lawn areas, and open party spaces for landscape planning
• Banquet hall and support rooms marked for hospitality requirements
• Staircases, toilets, utilities, and manager rooms labelled for design clarity
