24x45 House Plan with Shops and 3 Floor DWG Layout AutoCAD File

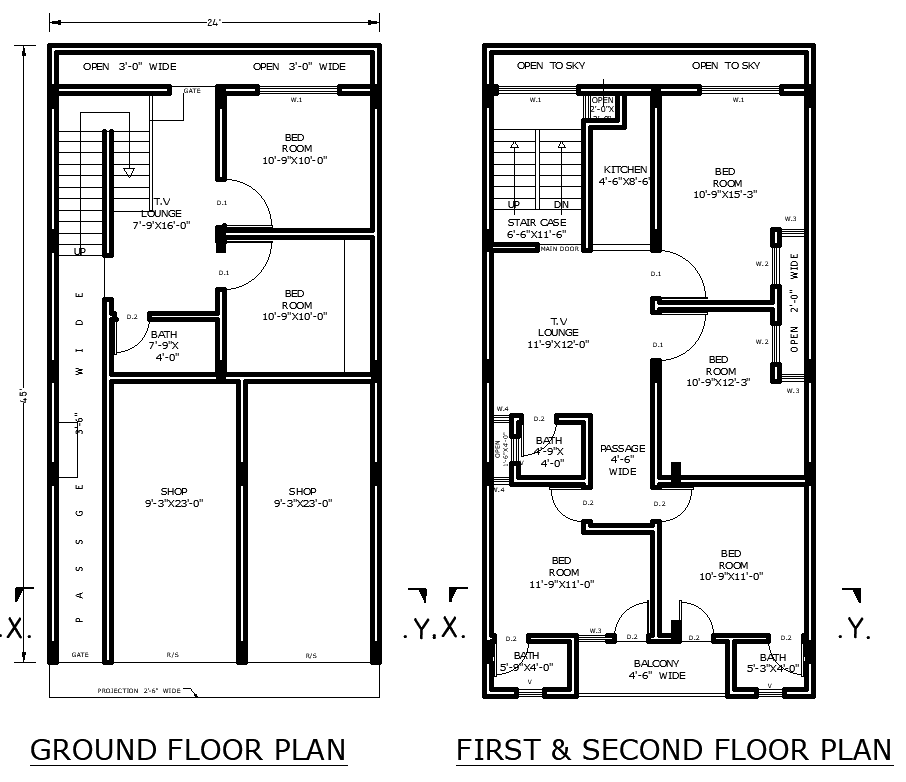

This detailed AutoCAD DWG layout presents a complete 24 ft by 45 ft residential and commercial building plan designed for practical use and accurate execution. The ground floor includes two shops measuring 9 ft 3 in by 23 ft each, along with a passage that is 3 ft 6 in wide. The layout also features well planned bedrooms with sizes such as 10 ft 9 in by 10 ft and 11 ft 9 in by 11 ft, attached and common bathrooms, a kitchen measuring 4 ft 6 in by 8 ft 6 in, open to sky sections, balconies, and a clear staircase area of 6 ft 6 in by 11 ft 6 in which improves vertical circulation.

The drawing also includes a front elevation, a full section at X and Y, a site plan, an area plan, and a detailed RCC schedule covering slab thickness of 5 inches, RCC beams of 6 inches by 18 inches, a plinth beam of 9 inches by 18 inches, and columns of 6 inches by 24 inches. The total covered area comes to 2913 square feet, as shown in the calculations. Door and window schedules include a main door of 4 ft by 7 ft, window sizes such as 4 ft 6 in by 4 ft, and ventilation details for accurate construction. This DWG file is ideal for architects, civil engineers, builders, and interior designers seeking a complete and ready-to-use architectural drawing.
