Commercial Building AutoCAD Plan with Multiple Shops and Rooms Layout

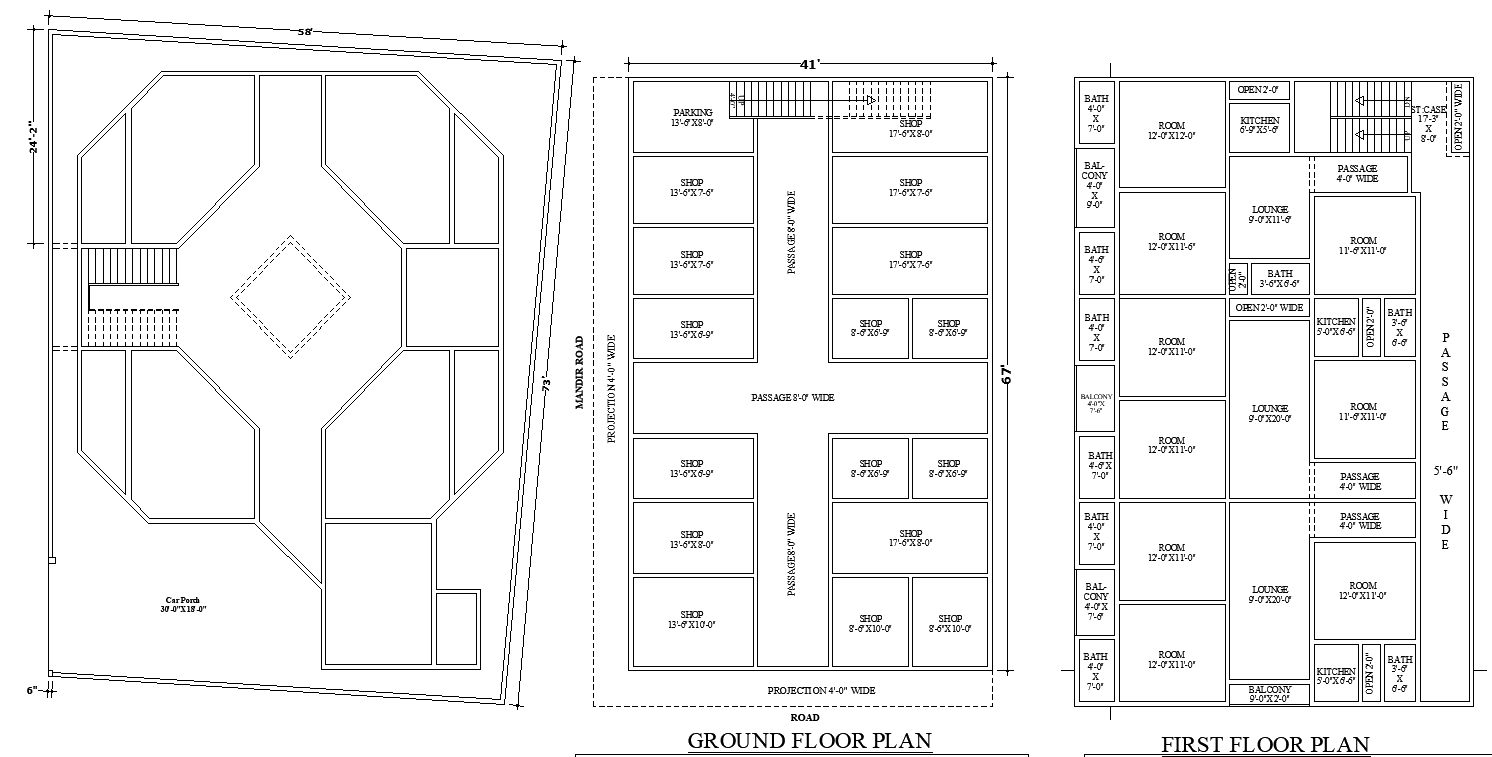

This detailed commercial AutoCAD DWG plan provides a complete multi-layout design featuring a full set of shops, rooms, passages, and circulation spaces as shown in the uploaded drawing. The ground floor contains a large commercial zone with multiple shop units, including sizes such as 17 ft 6 in by 8 ft, 17 ft 6 in by 7 ft 6 in, 13 ft 6 in by 8 ft, and 8 ft 6 in by 10 ft. An 8 ft wide central passage and a 4 ft wide surrounding passage ensure smooth movement throughout the commercial block. The layout also includes a parking area of 13 ft 6 in by 8 ft and a staircase area of 17 ft 3 in by 8 ft, which connects the upper levels.

The first floor and typical floor plans include several room units with measurements such as 12 ft by 12 ft, 12 ft by 11 ft, 11 ft 6 in by 11 ft and 15 ft by 11 ft along with multiple lounges sized 9 ft by 11 ft 6 in and 15 ft by 12 ft. Kitchens measure 6 ft 9 in by 5 ft 6 in and 5 ft by 6 ft 6 in while bathrooms range from 3 ft 6 in by 6 ft 6 in to 4 ft 6 in by 7 ft. Various balconies ranging from 4 ft by 7 ft 6 in to 5 ft by 4 ft 6 in are also provided. The drawing includes a duct area of 2 ft 6 in wide, open spaces of 2 ft wide, and a car porch area of 30 ft by 18 ft, along with shop clusters of 15 ft by 11 ft and 16 ft by 11 ft on the upper floors. This DWG file is ideal for architects and designers who require a complete commercial and residential mixed layout ready for precise planning and CAD modification.
