Residential Building DWG CAD Plan with Rooms Lounge Kitchen Bath

This residential layout drawing provides complete ground, first, and second floor plans with full measurements for all rooms, lounges, kitchens, and open spaces. The ground floor includes rooms sized 10 ft 6 in x 10 ft 6 in, 10 ft x 10 ft 6 in, 10 ft x 11 ft 9 in, 11 ft 6 in x 11 ft 6 in, a 29 ft x 6 ft lounge, and a 6 ft x 11 ft kitchen. Bathrooms measure 6 ft 3 in x 6 ft, 6 ft 9 in x 6 ft, and 5 ft x 10 ft 9 in, shown with ventilation and open-to-sky shafts of 5 ft width.

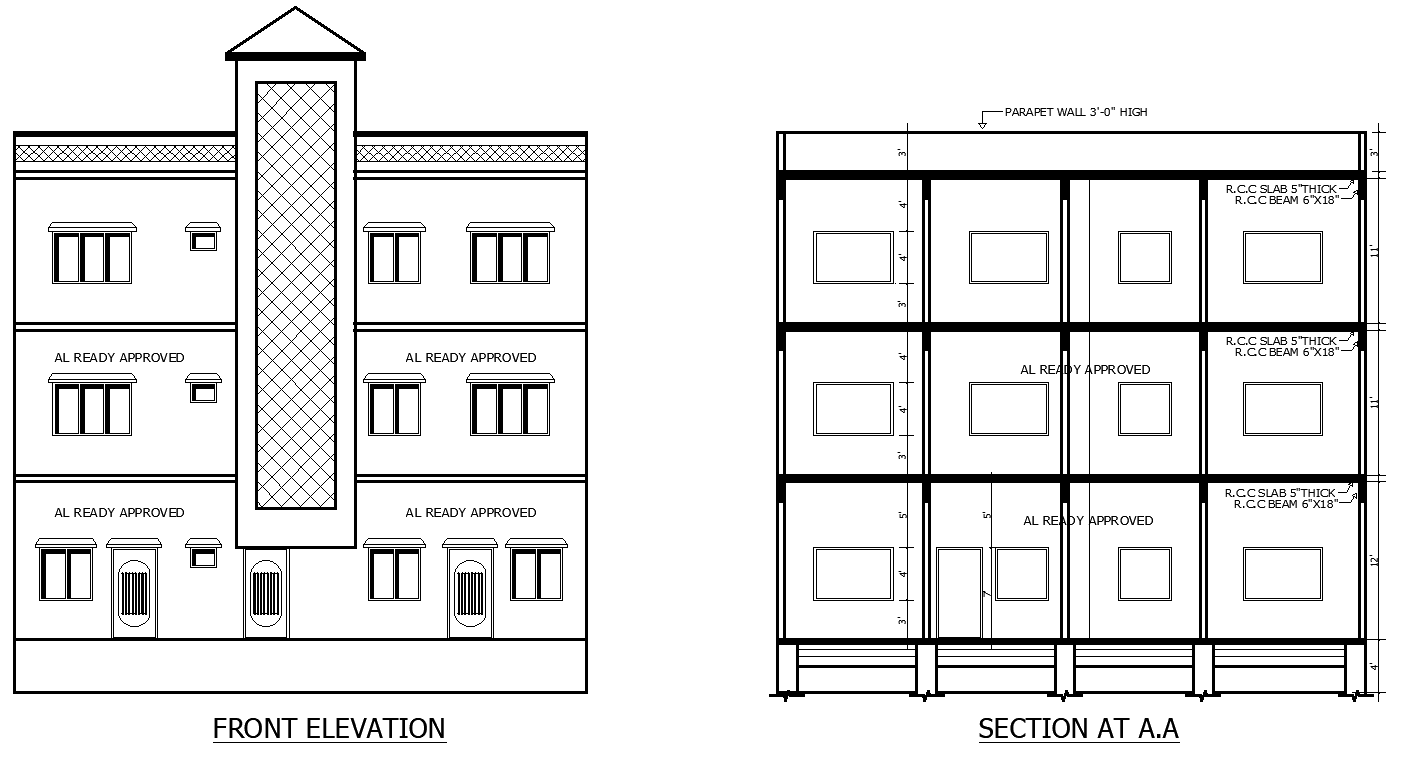

The first and second floor plans repeat the residential layout with open-to-sky courtyards and the staircase block sized 8 ft x 11 ft. The front elevation and section A-A show RCC beam 6 in x 18 in, slab 5 in thick, and parapet wall 3 ft high. The site plan displays plot dimensions 39 ft 3 in x 48 ft 2 in, along with 13 ft and 7 ft wide lanes. The RCC schedule defines column size 6 in x 18 in, plinth beam 6 in x 18 in, lintel 6 in x 9 in, and reinforcement spacing for beams and slabs.
