Apartment Building Cad Drawing with Commercial Hall and Floor Plans

This AutoCAD DWG apartment building plan provides a complete multi-storey layout including basement, ground floor, six typical floors, and a penthouse level. The ground floor includes a commercial hall of 1870 sq ft, circulation areas, and ramp access to the basement. Typical floors feature multiple apartments, such as units with carpet areas of 505.96 sq ft, 656.06 sq ft, and 621.06 sq ft, each configured with bedrooms measuring 10 ft x 11 ft 9 in, 11 ft x 10 ft 3 in, and 10 ft x 10 ft 9 in, along with lounges sized 11 ft x 15 ft 8 in and kitchens of 11 ft 6 in x 8 ft 2 in.

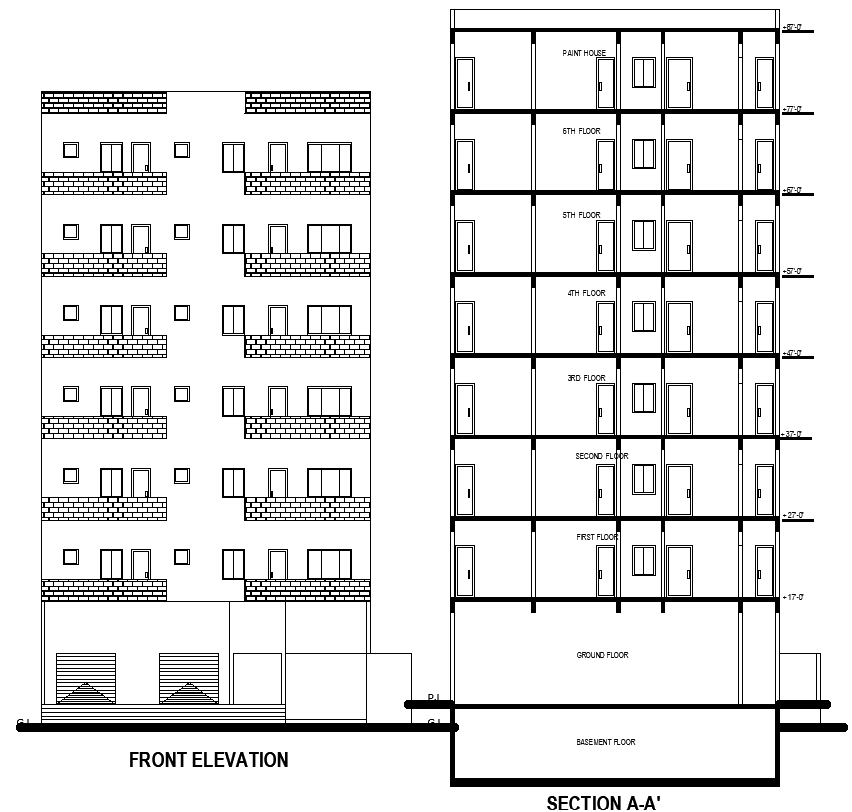

Each apartment includes 7 ft x 5 ft baths, 3 ft wide balconies, an 8 ft x 6 ft lift box, and 6 ft 6 in passages. The site plan measures 50 ft x 72 ft, while the block plan defines COS open spaces ranging from 5 ft 6 in to 7 ft 6 in. Section A-A illustrates vertical heights up to +87 ft, showing commercial hall, apartment floors, RCC column sizes, and structural levels, making this plan ideal for architects, civil engineers, interior designers, builders, and AutoCAD users seeking a fully dimensioned multi-floor cad drawing.
