Residential Cad Drawing Plan with Rooms Lounge Kitchen and Courts

This residential autocad plan provides a complete two-floor layout with clear measurements and well-defined functional spaces. The ground floor includes a bedroom measuring 15 ft x 12 ft, a second bedroom sized 14 ft x 12 ft 6 in, and a 17 ft 6 in x 17 ft TV lounge placed centrally for circulation. A drawing room of 13 ft 6 in x 12 ft 6 in, a 16 ft x 14 ft car porch, and a courtyard measuring 14 ft 6 in x 13 ft form the main layout. The kitchen is drawn at 8 ft 6 in x 9 ft, and bathrooms appear as 10 ft x 5 ft and 4 ft 6 in x 12 ft 6 in, with multiple open-to-sky zones of 3 ft and 5 ft 6 in widths for ventilation.

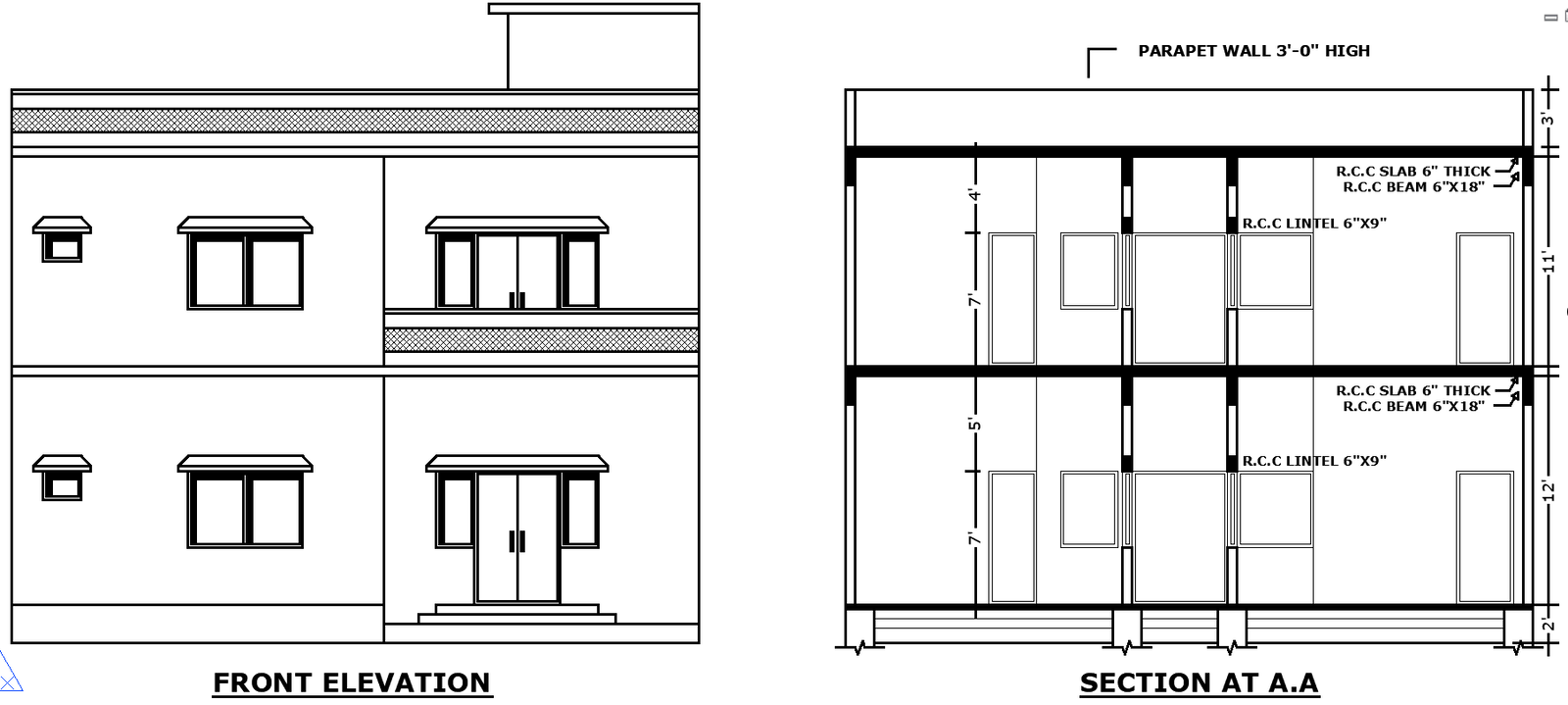

The first floor repeats the room arrangement with sizes identical to the ground level, including a 16 ft x 14 ft terrace and several open-to-sky voids positioned around the bedrooms and lounge. Section A-A illustrates RCC slab thickness of 6 inches, RCC beams at 6 in x 18 in, and lintel levels at 6 in x 9 in. The 36 ft x 60 ft site plan shows the plot boundary, lane access, COS open areas, and overall footprint, making this plan a complete residential reference for architects, engineers, and CAD professionals.
