House AutoCAD File Plan with Bedrooms Lounge Kitchen and Baths

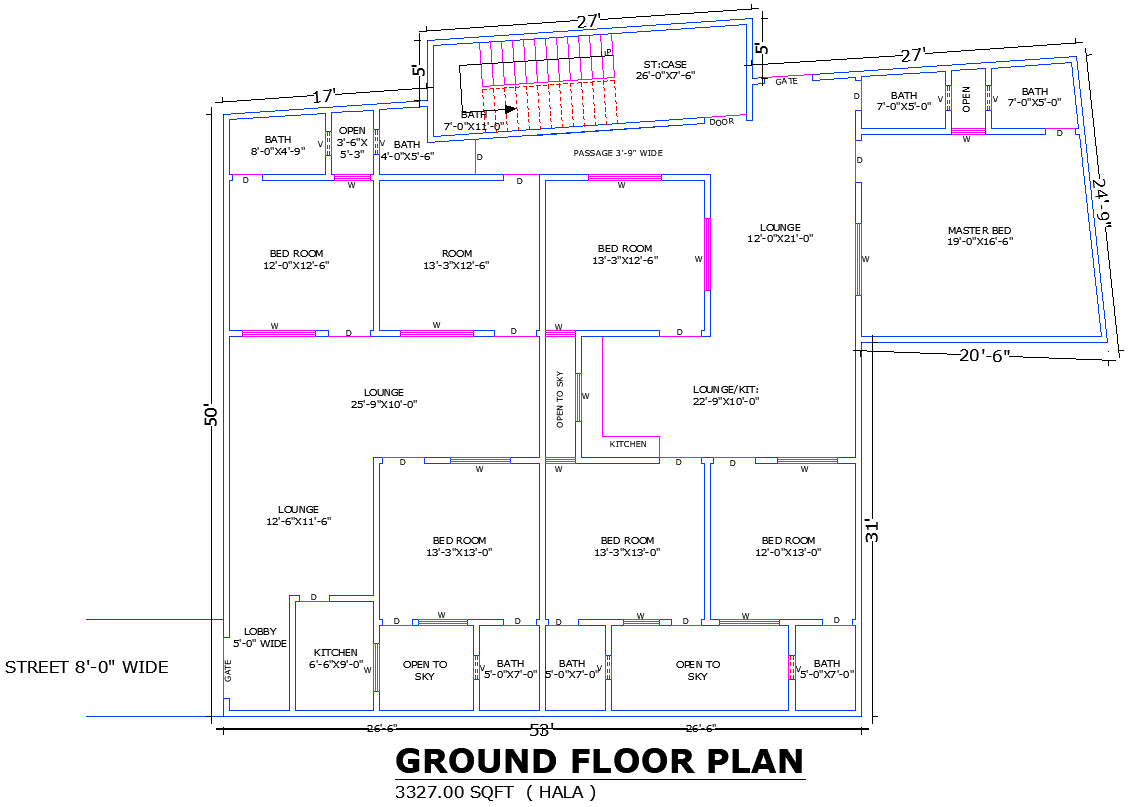

This residential AutoCAD layout shows a complete ground floor plan with accurately measured rooms, lounges, and service areas. The design features a 13 ft 3 in x 12 ft 6 in room, two bedrooms sized 12 ft x 12 ft 6 in and 13 ft 3 in x 12 ft 6 in, along with a spacious 12 ft x 21 ft lounge placed at the center for smooth movement across the house. The master bedroom measures 19 ft x 16 ft 6 in, and additional bedrooms of 12 ft x 13 ft and 13 ft 3 in x 13 ft are connected to open-to-sky spaces of 3 ft 6 in x 5 ft 3 in for ventilation.

The plan includes a 22 ft 9 in x 10 ft kitchen lounge, a 6 ft 6 in x 9 ft kitchen, and multiple bathrooms measured 5 ft x 7 ft, 8 ft x 4 ft 9 in, and 7 ft x 11 ft, positioned beside narrow service passages. The staircase block, sized 26 ft x 7 ft 6 in, provides access upward, while a 3 ft 9 in passage width ensures clear circulation. The total covered area is 3327 sq ft, set within a 50 ft x 53 ft boundary with an 8 ft wide street at the front. This DWG plan is ideal for architects, civil engineers, interior designers, builders, and students working on residential drafting and planning.
