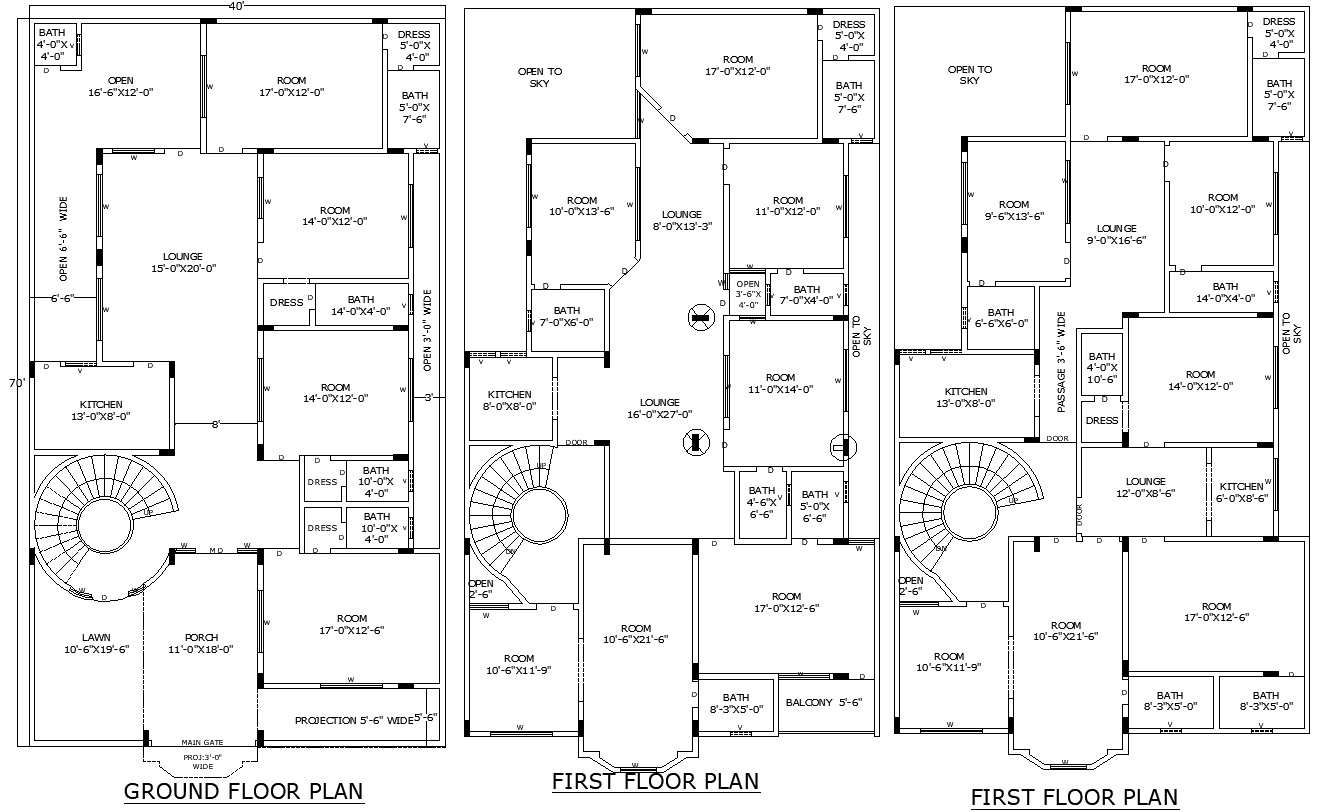

Large House Cad Drawing Plan with Rooms Lounges Kitchens and Baths

This residential AutoCAD layout presents complete ground and first-floor designs with detailed room dimensions and functional zoning. The ground floor includes rooms sized 17 ft x 12 ft, 14 ft x 12 ft, and 12 ft x 12 ft 6 in, with master rooms shown as 17 ft x 12 ft 6 in. Lounges measure 15 ft x 20 ft and 12 ft x 21 ft, providing central circulation. Kitchens appear as 13 ft x 8 ft, 8 ft x 8 ft, and 6 ft x 8 ft 6 in, supported by open service spaces. Bathrooms include measurements such as 10 ft x 4 ft, 8 ft 3 in x 5 ft, 7 ft x 6 ft, and 4 ft x 10 ft 6 in. Multiple open-to-sky voids measuring 3 ft, 6 ft 6 in, and 2 ft 6 in enhance ventilation.

The plans also show a 10 ft 6 in x 17 ft porch, 11 ft x 18 ft car porch, staircases sized 13 ft x 10 ft, 17 ft x 13 ft 6 in, and corridors from 3 ft 6 in to 8 ft wide. First-floor layouts include lounges of 16 ft x 27 ft, kitchens of 13 ft x 8 ft, terraces ranging from 6 ft to 6 ft 6 in, rooms such as 14 ft x 12 ft, 10 ft x 12 ft, 11 ft 6 in x 14 ft, and balconies measuring 4 ft to 4 ft 6 in. These DWG plans offer a complete reference for architects, civil engineers, interior designers, and builders needing accurate residential planning.
