Apartment Building AutoCAD with Flats Office Hall and Parking

This multi-storey residential and commercial AutoCAD plan shows a complete building layout with ground floor office space, car parking, and five typical apartment levels. The ground floor includes a 14 ft 6 in x 29 ft 6 in office, a 22 ft 6 in x 41 ft 6 in parking hall, two bedrooms sized 12 ft x 14 ft 6 in and 11 ft x 13 ft 6 in, a 13 ft x 11 ft drawing room, a 13 ft x 12 ft 6 in lounge, and a 5 ft x 9 ft 6 in kitchen. Bathrooms are shown as 4 ft 6 in x 7 ft and 4 ft 9 in x 9 ft 6 in, with open-to-sky spaces added for airflow.

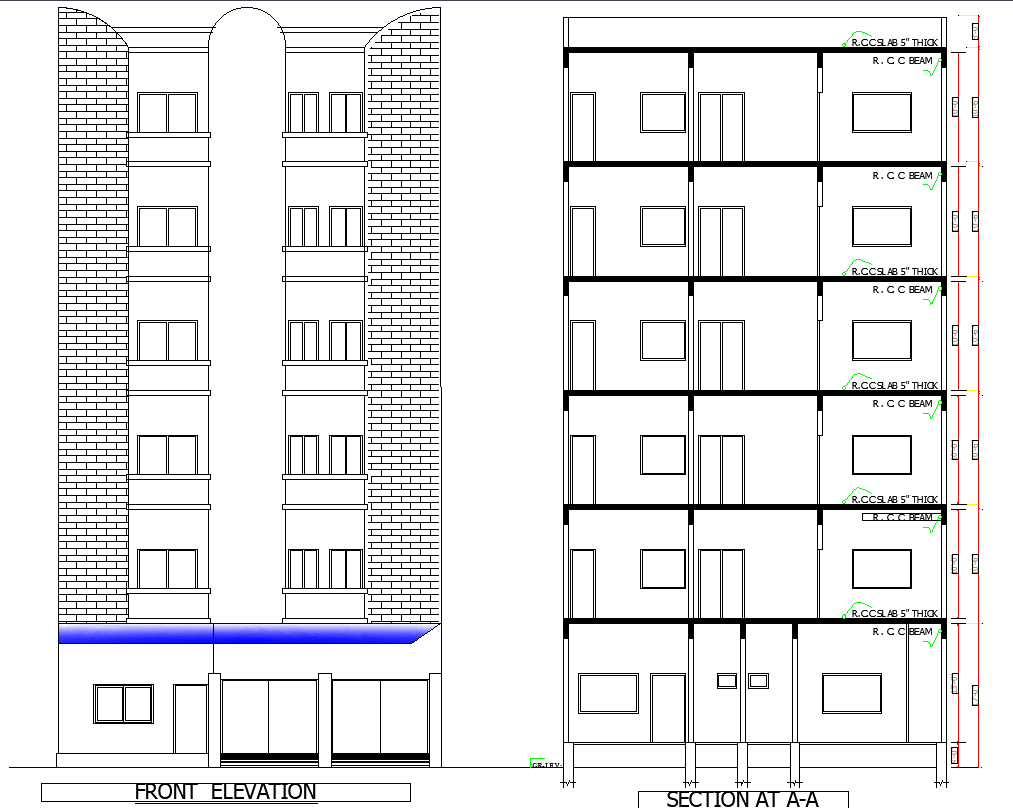

The first to fifth floors present typical flats with bedroom sizes such as 12 ft x 13 ft, 14 ft 6 in x 11 ft, 10 ft 6 in x 12 ft, and 11 ft x 13 ft 6 in. Lounges measure 12 ft 6 in x 15 ft 6 in and 10 ft 6 in x 15 ft 6 in, supported by kitchens sized 7 ft x 6 ft and 8 ft x 5 ft 6 in. Balconies of 8 ft x 5 ft and 11 ft x 5 ft improve ventilation. The section A-A shows RCC columns 9 in x 21 in, beams 9 in x 24 in, and a 5-inch slab, while the 38 ft 7 in x 70 ft site plan displays complete plot dimensions and road widths.
