House AutoCAD File Plan with Rooms Lounge Kitchen and Courtyard

This residential AutoCAD layout provides a complete two-floor house design, including detailed dimensions for each room and functional area. The ground floor features two bedrooms sized 12 ft 9 in x 10 ft 6 in, a 17 ft 6 in x 16 ft lounge, a 9 ft x 14 ft drawing room, and a 9 ft x 14 ft car porch. The kitchen measures 8 ft x 9 ft, and two bathrooms of 5 ft x 7 ft are positioned on both sides of the layout. An open courtyard of 15 ft x 7 ft 6 in supports ventilation across the floor.

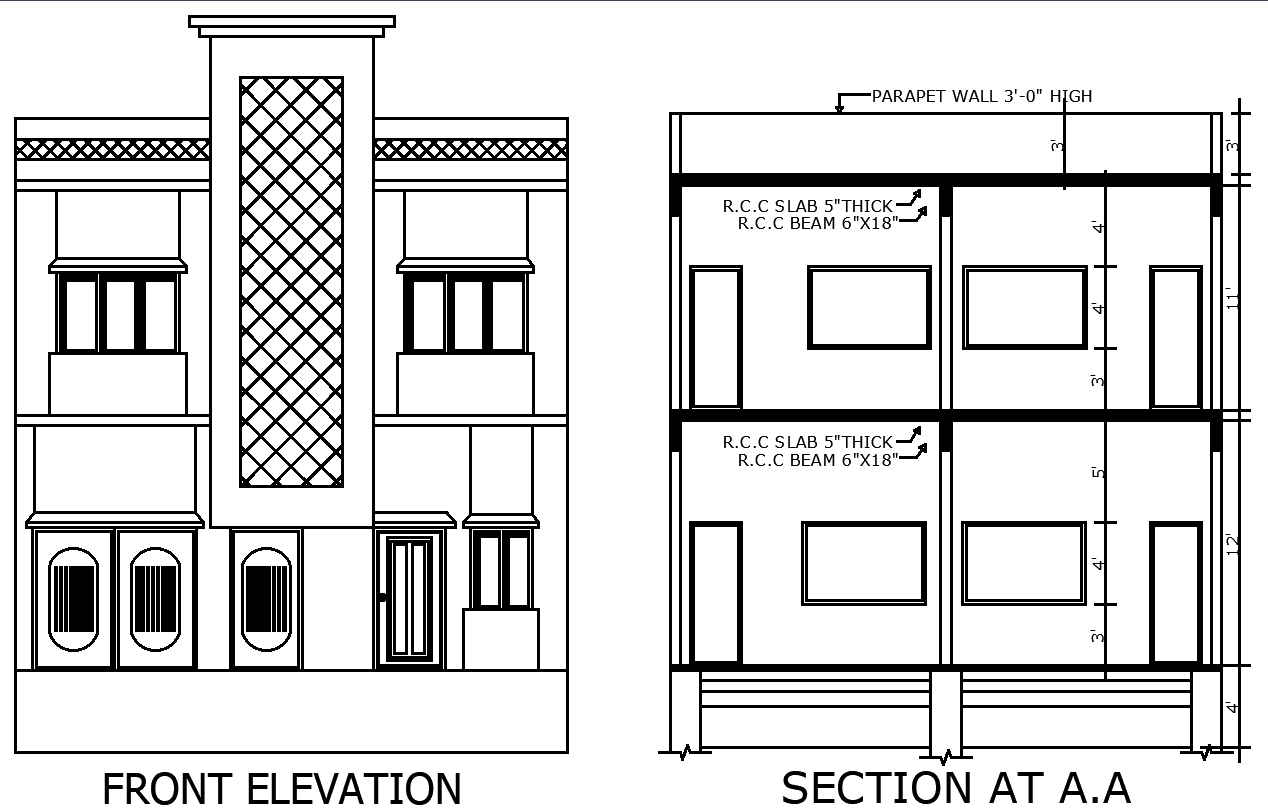

The first floor follows the same planning grid with rooms sized 12 ft 9 in x 10 ft 6 in, an open-to-sky space of 4 ft 9 in x 7 ft 3 in, and a centrally placed lounge measuring 17 ft 6 in x 16 ft. The staircase block of 7 ft x 14 ft connects both levels. Structural drawings include RCC columns of 6 in x 18 in, RCC beams of 6 in x 18 in, lintel beams of 6 in x 9 in, and a 5-inch slab thickness, all shown in section A-A. The 27 ft x 50 ft site plan displays plot boundaries and orientation, making this DWG ideal for architects, civil engineers, and interior designers needing a clear residential reference.
