House Design DWG CAD Plan with Bedrooms Lounge Kitchen and Terrace

This residential cad drawing shows a complete house design with clearly measured areas across the ground floor, first floor, and summer house levels. The ground floor features a 14 ft x 10 ft drawing room, a 15 ft 6 in x 9 ft 6 in bedroom, a 13 ft x 13 ft 9 in bedroom, a 14 ft x 16 ft 9 in TV lounge, and a 9 ft x 13 ft kitchen. Multiple bath areas sized 3 ft x 5 ft, 7 ft x 5 ft 6 in, and 8 ft 6 in x 5 ft 6 in are placed beside ventilation courts and verandahs.

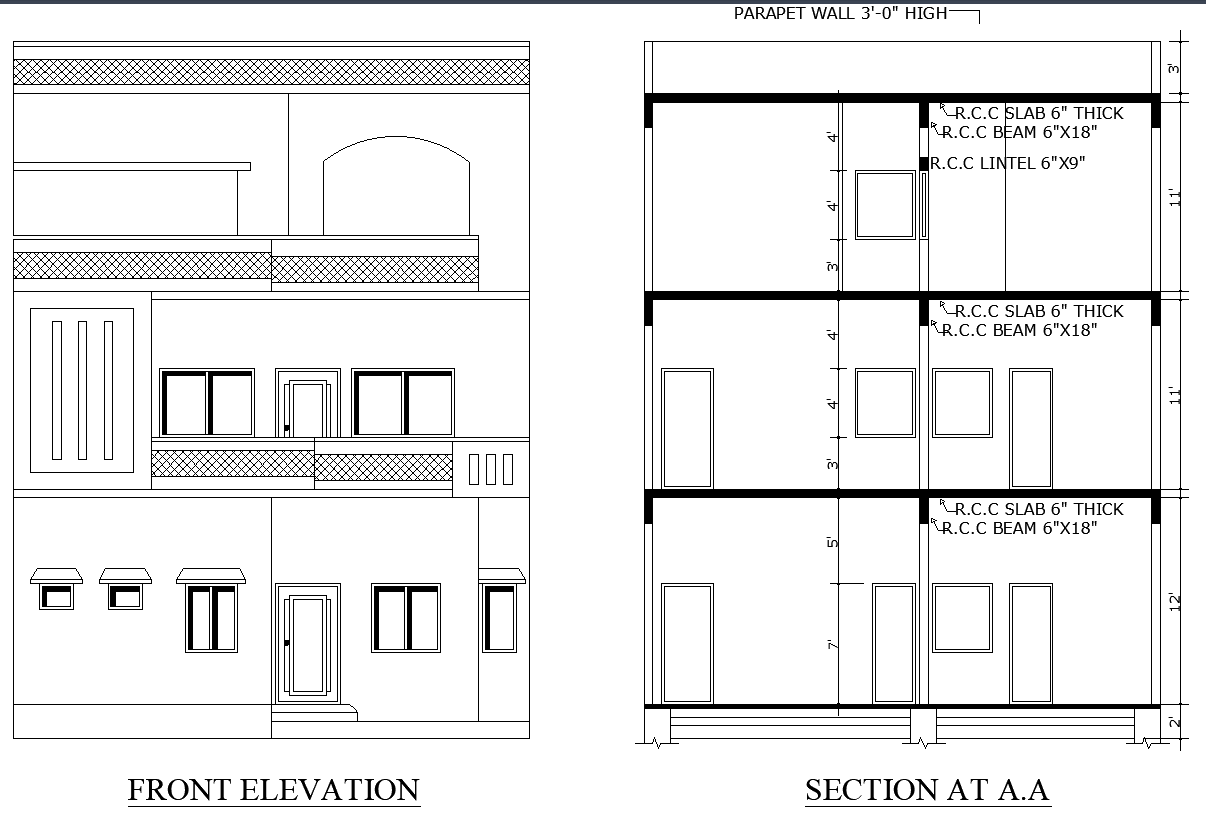

The first floor includes a 9 ft x 13 ft lounge, terraces measuring 14 ft 6 in x 6 ft and 9 ft x 5 ft, and repeat bedroom blocks for upper-level circulation. The summer house level provides a 15 ft 6 in x 9 ft 6 in room, a 13 ft x 13 ft 9 in verandah, and a large open terrace. Section A-A highlights RCC beams 6 in x 18 in, lintels 6 in x 9 in, parapet height 3 ft, and slab thickness 6 inches for structural clarity. The 30 ft x 60 ft site plan and area schedule support accurate measurement documentation for architectural work.
