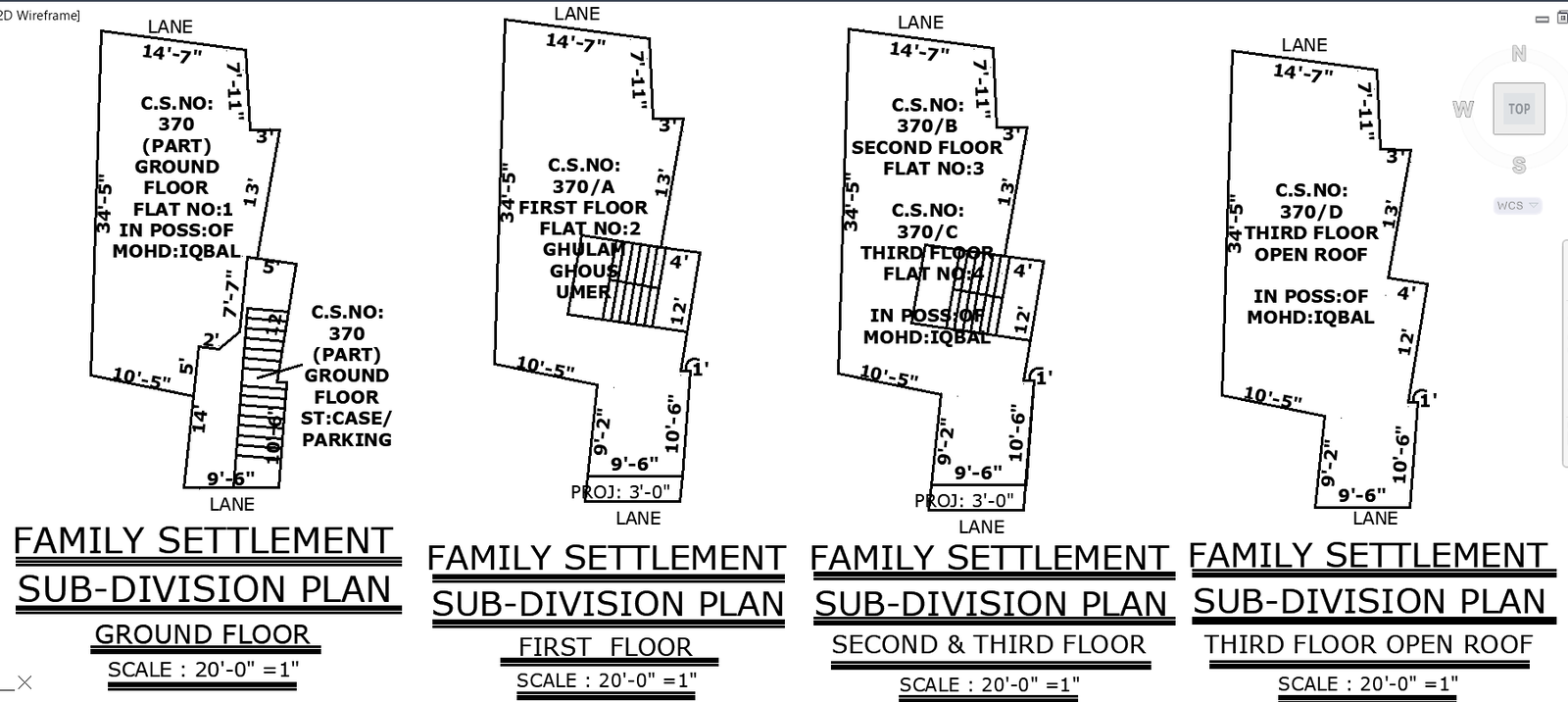

Ground to Third Floor AutoCAD Subdivision Plan with Flat Details

This AutoCAD DWG subdivision plan presents a complete architectural breakdown of the family settlement property located in C S No. 370, covering the ground floor, first floor, second floor, and third floor in precise detail. The ground floor layout includes Flat No 1 with room dimensions such as 12 ft 9 in by 13 ft, an 8 ft by 10 ft room, a 9 ft 9 in by 9 ft lounge, a 5 ft by 7 ft kitchen, a 3 ft 6 in by 8 ft bath, and a staircase and parking zone sized 8 ft 4 in by 15 ft. Additional elements such as a 3 ft 6 in by 4 ft WC, open spaces of 3 ft 9 in by 4 ft, and multiple lane-facing measurements including 14 ft 7 in and 10 ft 5 in enhance the clarity needed for construction planning and visualization.

The first floor features Flat No 2 with a 12 ft 9 in by 13 ft 3 in room, an 8 ft 6 in by 11 ft 6 in room, a 6 ft 9 in by 20 ft lounge, a 4 ft 6 in by 7 ft kitchen, and two baths measuring 5 ft 6 in by 5 ft 6 in and 3 ft 6 in by 8 ft. The second and third floors show Flat No 3 and Flat No 4 with repeated structured layouts including a front lane width of 14 ft 7 in and a depth of 34 ft 5 in. This detailed DWG plan supports architects, engineers, and designers in creating accurate floor models and efficient project workflows
