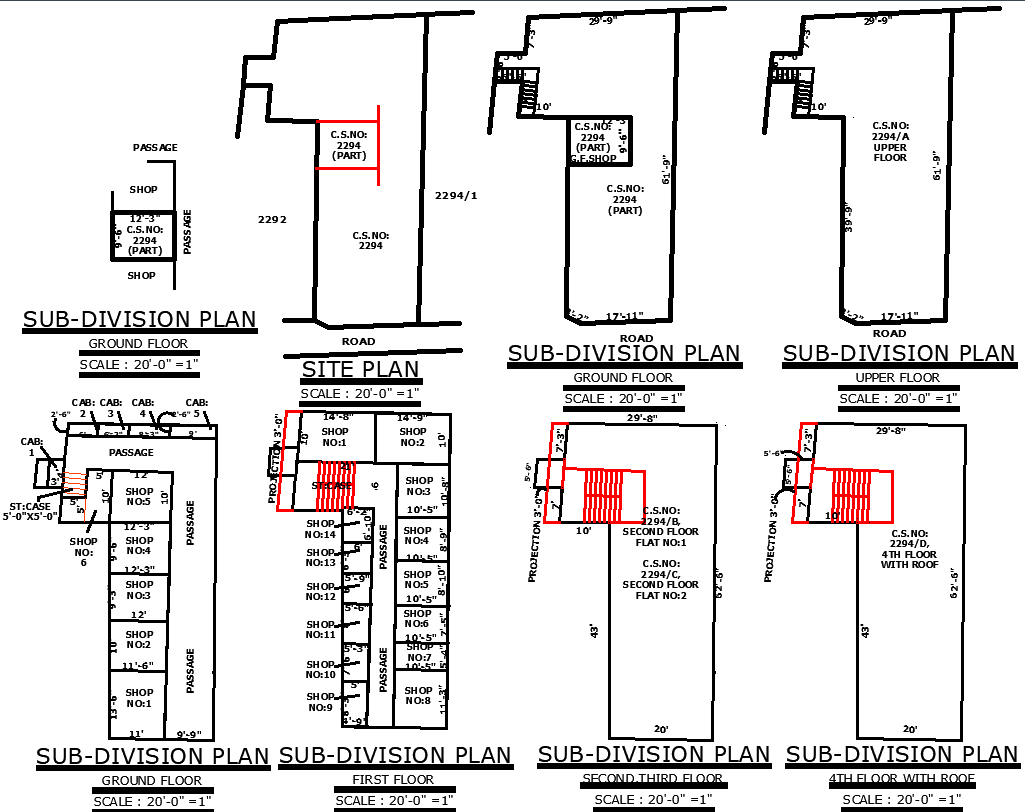

Ground and Upper Floor AutoCAD Subdivision Plan with Shops Layout

This AutoCAD DWG subdivision plan provides a complete commercial building layout from ground floor to upper floors, designed for architects, civil engineers, and interior designers who need precise, ready-to-use drafting references. The ground floor layout includes a series of shops arranged with accurate measurements such as 12 ft 3 in lengths, 9 ft 6 in widths, and 10 ft deep segments, supported by multiple passages for circulation. Shop units include clear sizes such as 10 ft 5 in by 8 ft 9 in, 10 ft 5 in by 8 ft 10 in, 10 ft 5 in by 7 ft 5 in, and 10 ft 5 in by 5 ft 4 in, enabling transparent spatial planning for commercial use. The centrally placed staircase block measuring 5 ft by 5 ft ensures easy vertical movement.

The first floor expands the layout with fourteen shop units featuring 3 ft projections, 5 ft and 4 ft 9 in passages, and internal widths of 6 ft 2 in, 6 ft 10 in, 8 ft 3 in, and 11 ft 3 in. The upper floors include Flat No. 1 and Flat No. 2, with full building dimensions of 62 ft 6 in depth, 29 ft 8 in frontage, and sections of 20 ft and 43 ft that clearly define the residential or mixed-use structure. This detailed DWG drawing helps professionals save drafting time and ensures accurate project planning.
