Commercial Shop Layout CAD Plan with Units Passages and Road Layout

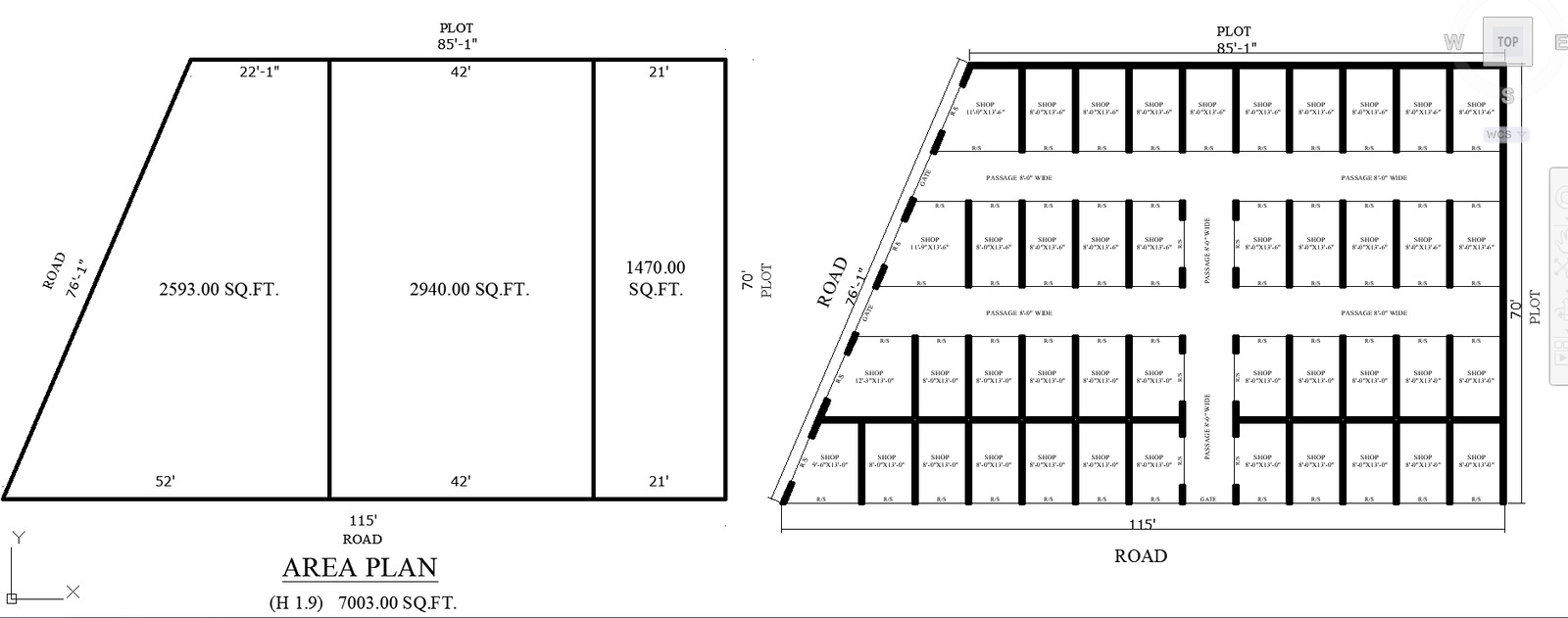

This commercial shoplayout drawing provides a complete distribution of shop units, plot areas, and circulation details. The plan includes multiple shop blocks with detailed measurements such as 8 ft x 13 ft, 12 ft 3 in x 13 ft, 10 ft x 69 ft, 37 ft x 15 ft, 30 ft 3 in x 15 ft and 23 ft 9 in x 15 ft, arranged along 115 ft, 85 ft 1 in and 76 ft 1 in road edges. Passages are shown as 8 ft wide, running through the center to ensure smooth movement for customers and services.

The plot area plan displays a total site coverage of 7003 sq ft, with clear boundary lines and shop sequences labeled for fast identification. The drawing also marks the gate locations, road setbacks, and repetitive shop modules, helping architects, civil engineers, and commercial planners analyze frontage, access, and circulation patterns effectively.
