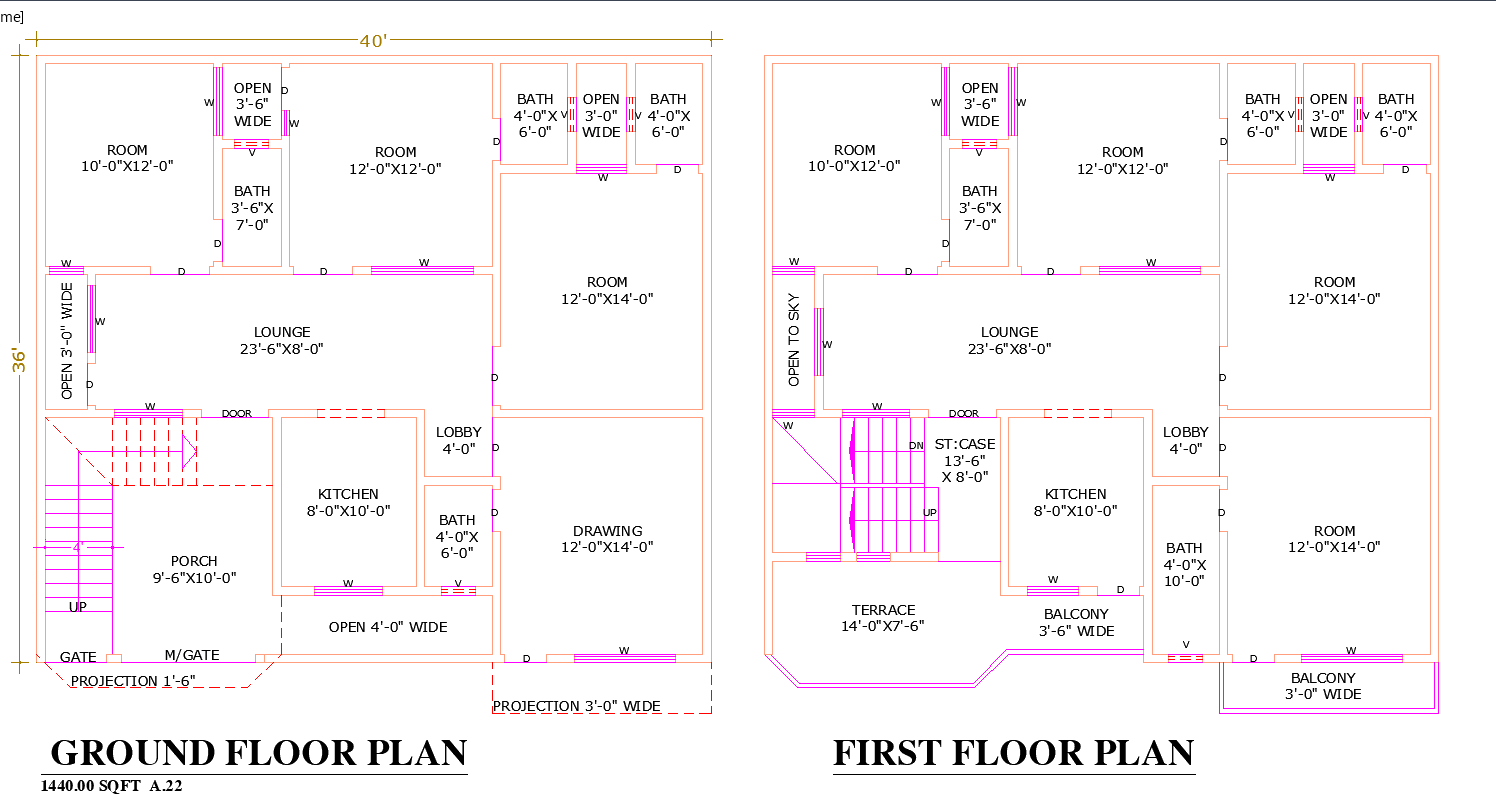

Ground and First Floor AutoCAD Plan with Rooms, Lounge, and Terrace

 This AutoCAD DWG file provides a complete architectural layout of the ground floor, showcasing detailed room dimensions and circulation planning ideal for architects, civil engineers, interior designers, and builders. The ground floor includes multiple room sizes, such as 10 ft by 12 ft, 12 ft by 12 ft, and 12 ft by 14 ft, along with a 12 ft by 14 ft drawing room positioned near the entrance. The kitchen is sized 8 ft by 10 ft, supported by a 4 ft lobby, while the lounge spans 23 ft 6 in by 8 ft to create an open living space. The plan also includes four bathrooms measuring 3 ft 6 in by 7 ft, and 4 ft by 6 ft, along with open areas of 3 ft 6 in and 3 ft width for proper ventilation. Additional elements, such as the 9 ft 6 in by 10 ft porch, 4 ft open passage, and projections of 1 ft 6 in and 3 ft wide, add clarity to the overall structure.

The first floor layout extends the residential arrangement with room sizes of 10 ft by 12 ft, 12 ft by 12 ft, and 12 ft by 14 ft, maintaining consistency in planning. The lounge remains 23 ft 6 in by 8 ft, while the kitchen is repeated as 8 ft by 10 ft, supporting efficient space utilization. The first floor also features a terrace measuring 14 ft by 7 ft 6 in, a staircase block of 13 ft 6 in by 8 ft, balconies of 3 ft and 3 ft 6 in width, and an open-to-sky zone enabling natural airflow. With clear measurements and structured layouts, this DWG plan offers ready-to-use precision for drafting, modelling, and design workflows, helping professionals save time and improve accuracy.
