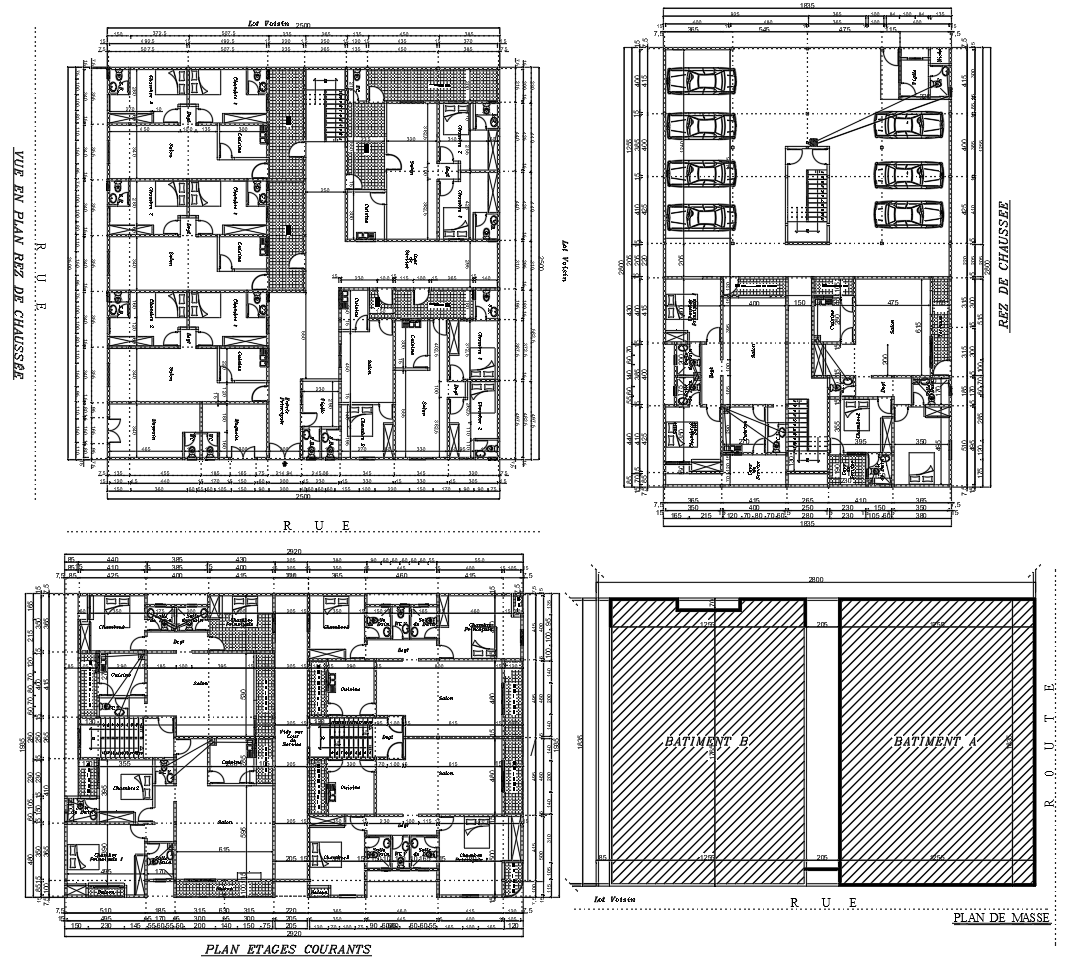

Multi-Unit Residential AutoCAD DWG with 2800 Site and Floor Layouts

This AutoCAD DWG file provides a detailed residential building layout created on a 2800-wide site with clearly marked 1835 spans and 1255 room modules distributed across the ground and upper floors. The drawing includes well-defined chambres, salons, buanderie spaces, sanitation areas, and cour sections, all organised using precise measurements such as 205, 350, 475, 61,5, and 320 to support accurate architectural design. The ground floor also features a structured parking area with vehicle bays set at 365, 385, 5,45, and 475 spacing, positioned around a centrally located staircase block for smooth vertical circulation.

The upper levels continue the organised layout with repeated unit configurations aligned on 400 and 415 wall grids, along with balconies marked at 95, 10,0, and 140 for clear external planning. Corridor networks and circulation routes are designed to provide functional movement throughout the building. This DWG is ideal for architects, civil engineers, interior designers, builders, and CAD users looking for measurement-ready plans suitable for AutoCAD, Revit, 3D, Max, and SketchUp.
