Residential Floor Plan AutoCAD DWG with Reception Kitchen and Bedrooms

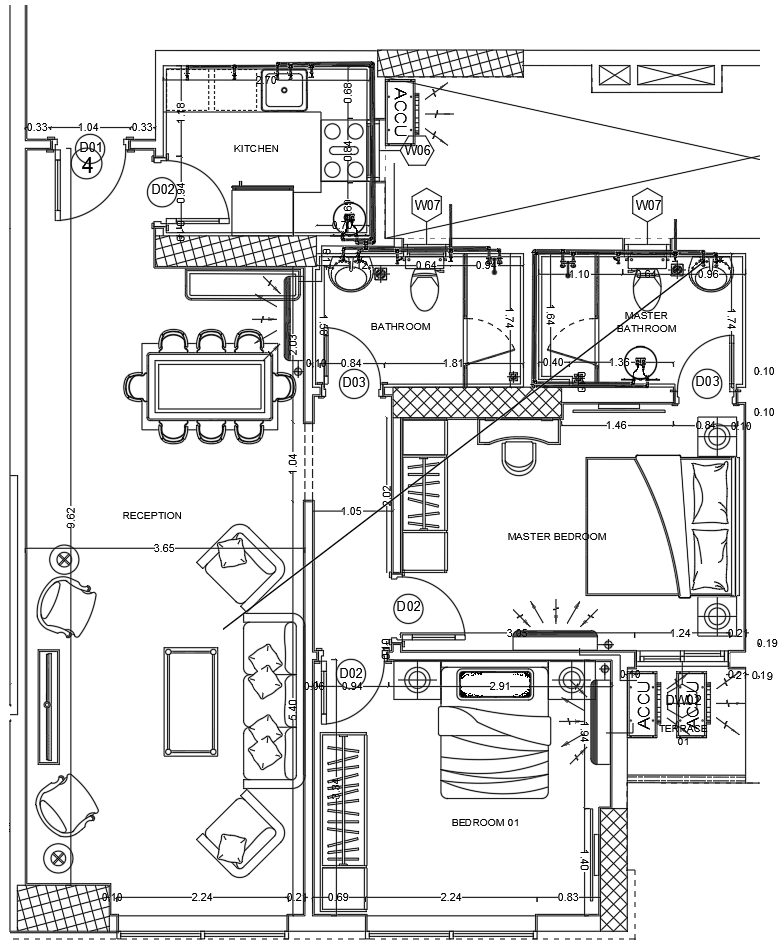

This AutoCAD DWG floor plan provides a clear residential layout that includes a reception area measured at 3.65 width, a fully detailed kitchen zone with marked dimensions such as 0.88, 1.04, and 0.33, and two bedrooms arranged with accurate internal sizing, including 2.91, 1.24, 1.46, and 2.24 as shown throughout the drawing. The plan also presents a master bathroom with measurements like 1.10, 0.9,6 and 0.84, along with a secondary bathroom that includes essential fittings set at 1.74, 1.81, and 0.84 for precise architectural coordination. Door labels D01, D022, and D03 and window symbols W06 and W07 are included to support clear construction documentation.

Additional details, such as the ACCU area, terrace layout, sanitary fixtures, and internal circulation line, help architects, civil engineers, interior designers, and CAD users understand how each space connects within the residential plan. This measured drawing supports professionals working in AutoCAD, Revit, and similar tools by offering reliable, ready-to-use references.
