Private villa site plan with 18.50m road access and pool layout

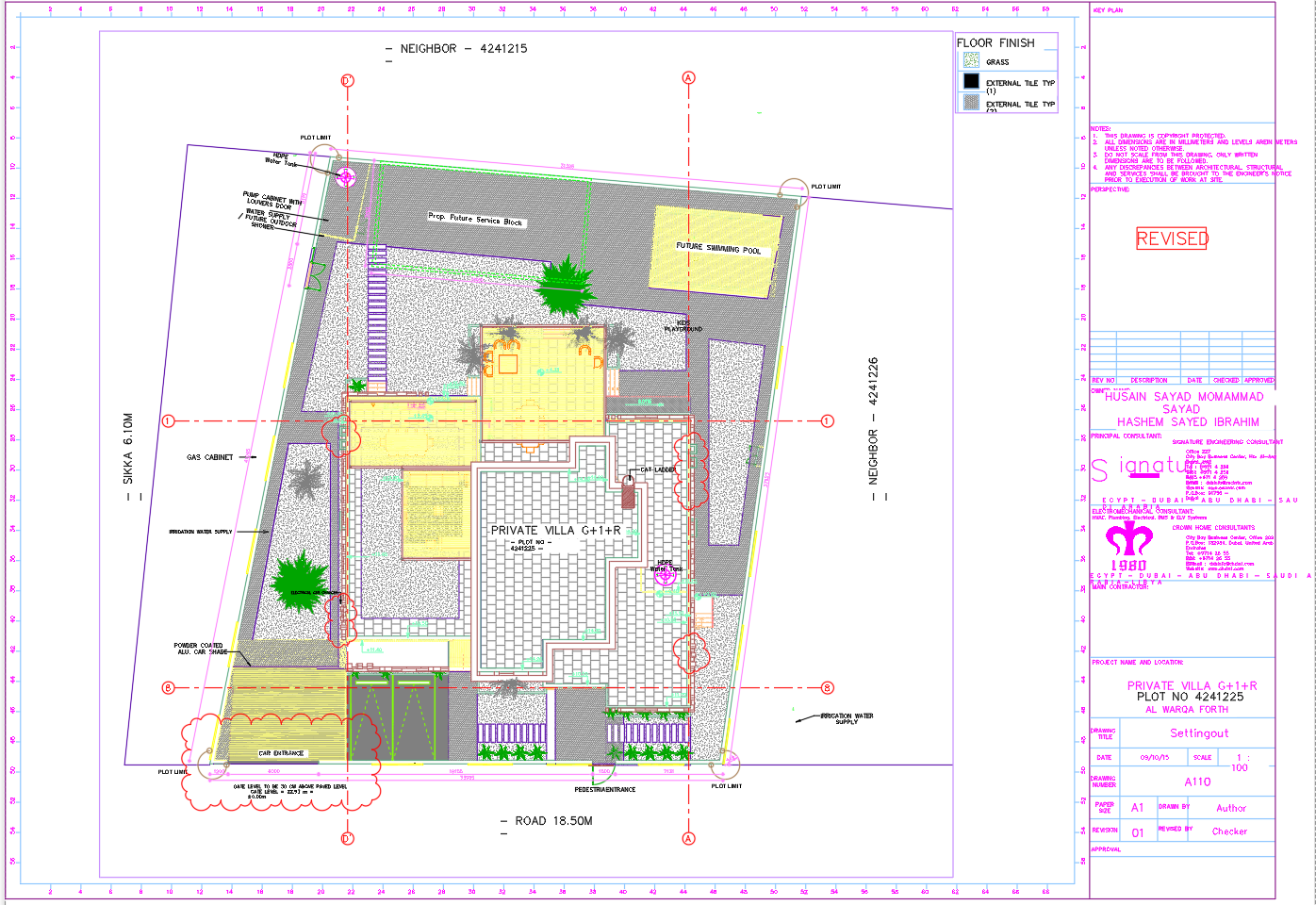

 This AutoCAD DWG file provides a fully detailed private villa G+1+R site plan featuring a clear arrangement of built spaces, landscape zones, circulation routes, and outdoor amenities. The layout connects directly to an 18.50m wide main road, offering a well-defined car entrance, pedestrian entrance, and organized approach area. The villa is centrally positioned within the plot limits, surrounded by paved walkways, green buffers, plantation beds, and irrigation supply points. Utility placements such as the gas cabinet, pump chamber with lifting station, and service routes are clearly marked, ensuring accurate coordination for engineering and execution work.

On the right side of the plot, the drawing highlights the designated future swimming pool area, accompanied by pathway access and softscape elements. A proposed future service block is located toward the rear, supporting future expansion needs. Neighbouring plot references provide clear boundary alignment, while the landscape elements, including trees, shrubs, and shaded zones, enhance the outdoor environment. The site plan also shows the courtyard paving, stepped access, and surrounding hardscape, making it highly useful for architects, civil engineers, and designers seeking a precise residential site layout for planning and construction.
