40x50 Residential Ground Floor Architectural Layout with Dimensions

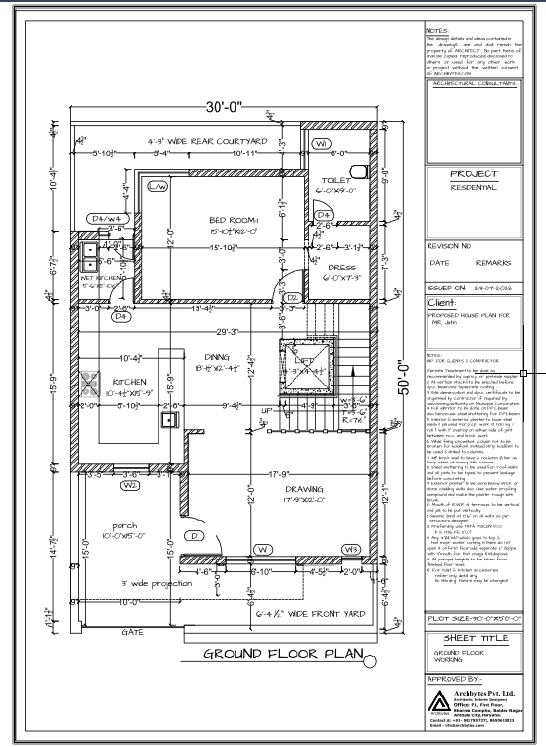

This 40x50 residential ground floor architectural plan presents a well-organized layout designed to support efficient space use and smooth construction execution. The plan features a spacious drawing room measuring 17 feet 9 inches by 12 feet, a dining area sized 10 feet 4 inches by 11 feet 9 inches, and a functional kitchen with a 9 feet 2 inch by 10 feet 2 inch layout. The residential bedroom measures 15 feet 10 inches by 12 feet and includes a connected dress area of 6 feet by 7 feet 6 inches and an attached toilet measuring 6 feet by 9 feet. The design also provides a 4 feet 3 inch wide rear courtyard and a 6 feet 4.5 inch front setback to enhance ventilation and natural lighting throughout the residence.

In addition to the main living areas, the residential layout includes a porch, a clearly marked entry gate, stair positioning, and wet area arrangements that ensure smooth movement and functionality. Structural elements such as wall thicknesses, door placements, window openings, and internal circulation paths are displayed with clarity for construction teams. This DWG file is ideal for architects, civil engineers, interior designers, and builders who require a precise and well-structured residential ground floor plan. Its accurate dimensions and clear zoning make it suitable for modern house planning, municipal approvals, and on-site implementation.
