Free Standing Wall Design with Mesh Panel and Post Pipe Layout Details

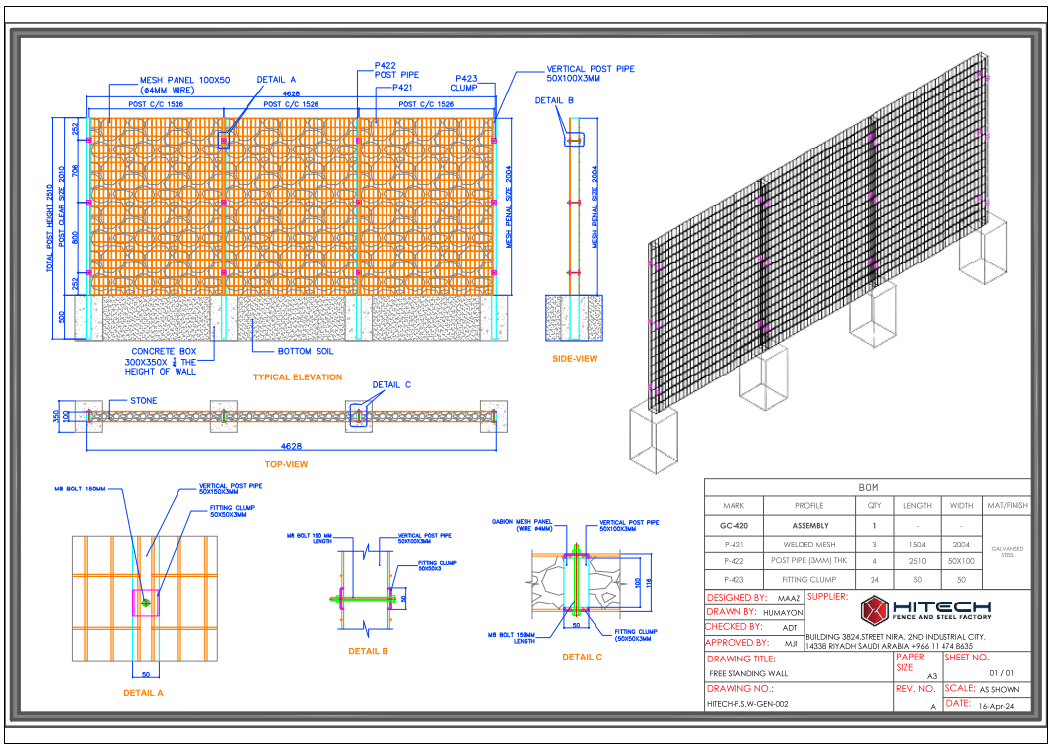

This free-standing wall drawing provides complete structural details for accurate fabrication and installation, featuring mesh panel dimensions of 1504 mm by 2004 mm, supported by vertical post pipes measuring 50x100 mm with a 3 mm thickness, placed at a center distance of 1526 mm. The full wall length shown is 4628 mm, including welded mesh panels, fitting clamps sized 50x50 mm, and M8 bolts used for secure connections as seen in Detail A, Detail B, and Detail C. The layout also includes a reinforced concrete box foundation measuring 300x350 mm with depth equal to the wall height, providing structural stability against soil loads.

The top view, typical elevation, and side view illustrate the exact assembly sequence and component placement, ensuring precision for architects, civil engineers, and builders involved in metal fence and boundary wall development. This detailed AutoCAD drawing supports efficient execution on site, reducing installation errors while maintaining high structural integrity, making it an essential reference for all construction professionals seeking accurate wall system detailing.
