4M Hinged Tapered Pole DWG with 282 mm Baseplate and Access Door

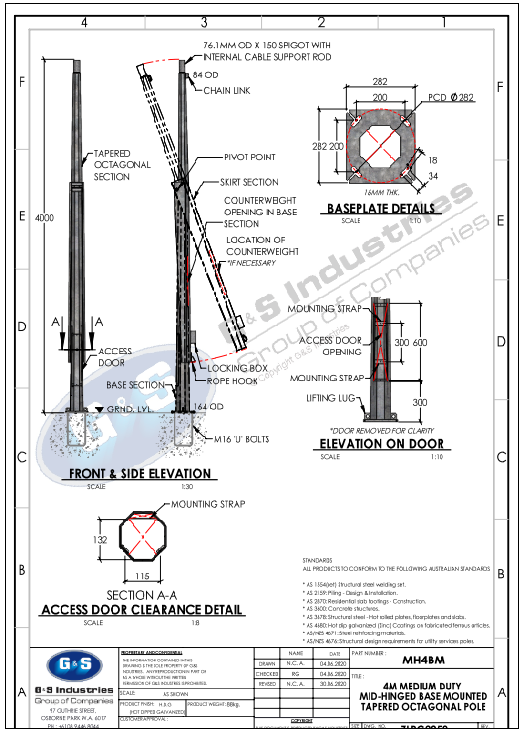

This AutoCAD DWG file provides a complete technical drawing of a 4M medium-duty hinged tapered octagonal pole, showing dimensional details required for fabrication and installation. The front and side elevations illustrate the pole’s full 4000 mm height, tapered octagonal shaft, and 76.1 mm OD × 150 mm spigot equipped with an internal cable support rod. The drawing highlights the pivot point, chain link, skirt section, locking box, rope hook, and counterweight opening inside the base section. The base section is detailed with 164 mm OD, supported by M16 U-bolts, ensuring secure mounting. The 282 × 282 mm baseplate layout includes 200 mm bolt spacing, 18 mm and 34 mm offsets, and a 16 mm thick plate, all clearly dimensioned for structural accuracy.

An additional elevation focuses on the 300 × 600 mm access door, showing lifting lugs, mounting straps, and internal reinforcement. Section A-A provides an exact 132 × 115 mm clearance for cable entry and maintenance access, ensuring compatibility with electrical installations. The drawing also lists Australian Standards such as AS 1554, AS 2159, AS 2870, AS 3600, AS 3678, AS 4680, AS/NZS 4671, and AS/NZS 4676, demonstrating compliance with structural and galvanizing requirements. This DWG is ideal for architects, civil engineers, lighting designers, and contractors involved in pole installation and infrastructure planning.
