Adsorption Chamber Structural Layout with Nozzle and Baseplate

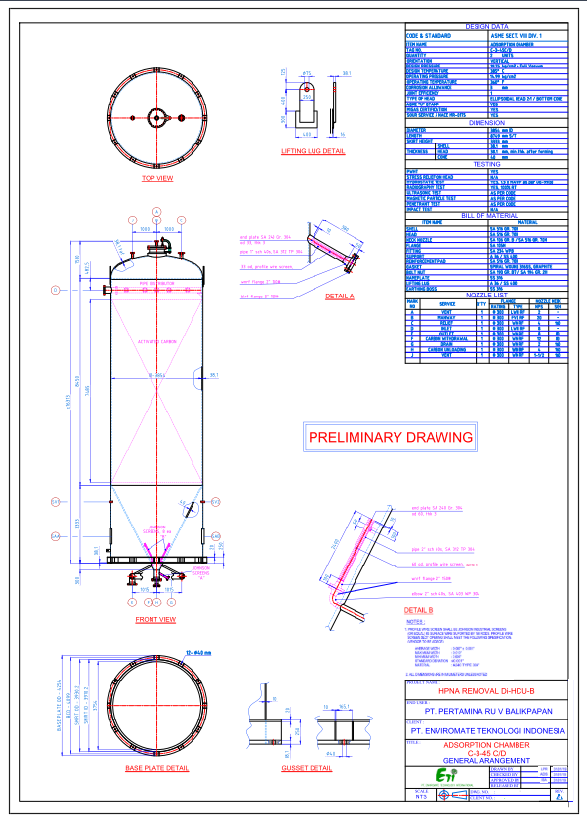

This adsorption chamber general arrangement file provides a complete engineering layout featuring front, side, and sectional elevations. The drawing includes precise placement of activated carbon, pre-distributor assembly, hinged access door clearance, and full dimensional references. Key specifications such as 76.1 mm OD × 150 spigot, 64 OD chain link, SA 312 TP 304 pipes, 150# WNRF flanges, and base plate dimensions are clearly detailed for accurate fabrication. Additional information, such as valve positions, pivot points, and counterweight installation, is shown for reliable mechanical operation.

The file also includes a comprehensive nozzle list with service types, flange ratings, and neck dimensions, enabling seamless integration into industrial systems. Structural components such as gusset plates, lifting lugs, reinforced pad details, and welded joints are fully dimensioned for construction precision. With complete baseplate geometry, bolt hole spacing, and material grades, this drawing ensures high-quality execution for industrial adsorption systems. This technical layout is ideal for architects, civil engineers, mechanical designers, and industry professionals requiring accurate AutoCAD references for manufacturing and installation, supported by infrastructure planning references such as longitudinal profile CAD drawings prepared for rail projects in DWG format for engineering coordination.
