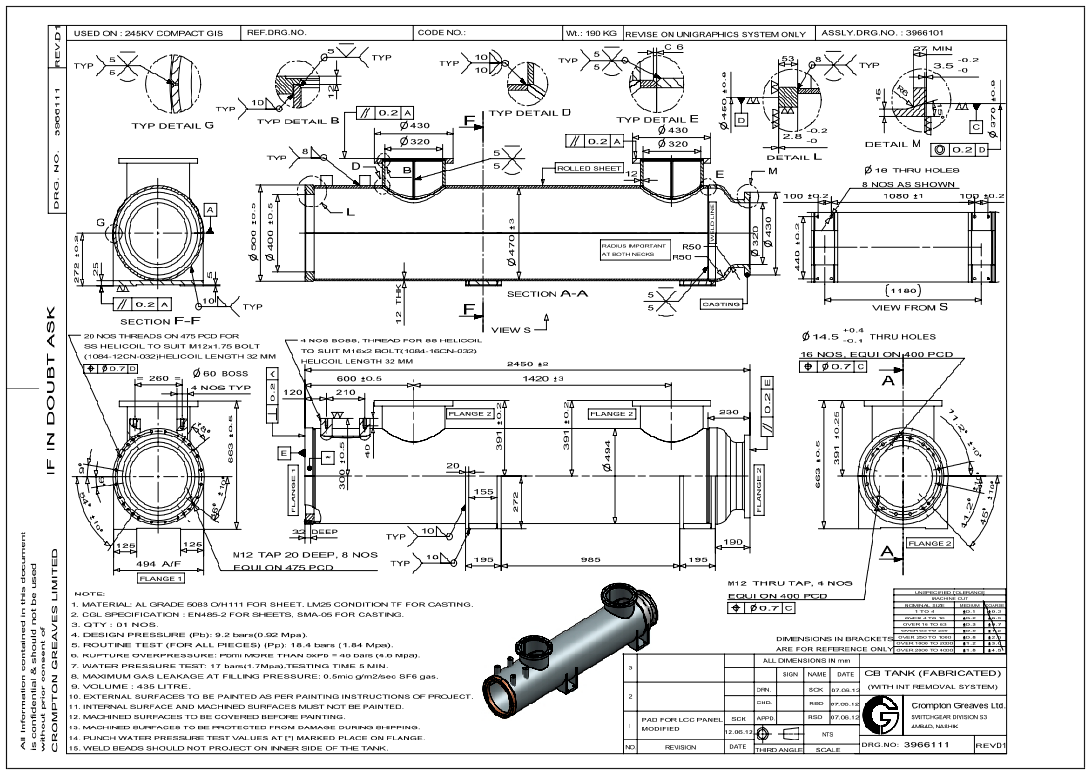

High-Pressure CB Tank Fabrication Drawing with 435L Capacity Details

This detailed CB tank fabrication drawing provides complete dimensional specifications, material requirements, and pressure test information essential for high-precision manufacturing. The layout includes the 435-litre tank volume, flange dimensions, 12 mm wall thickness, 400 PCD bolt spacing, and rolled-sheet construction with exact machining tolerances. It also displays sectional views, welded joints, reinforced neck radii, and M12 bolt arrangements that support accurate assembly and structural stability. The drawing outlines pressure ratings, including a 9.2-bar design pressure, 18.4-bar routine test pressure, and 17-bar water test parameters, ensuring compliance with industrial safety standards.

Engineers and fabrication teams benefit from clearly defined machining notes, cast component details, surface preparation guidelines, and internal/external coating instructions. The plan provides front, side, and sectional elevations, along with baseplate details, helicoil bolt specifications, and mounting points to support seamless installation. These comprehensive fabrication details enable manufacturers to produce a durable and leak-proof CB tank suitable for high-pressure applications in electrical and mechanical systems. Ideal for architects, civil engineers, and industrial designers, this precise drawing supports confident planning, inspection, and execution across advanced engineering projects.
