Anchor Bolt 60mm Diameter Details Drawing With 1750mm Length

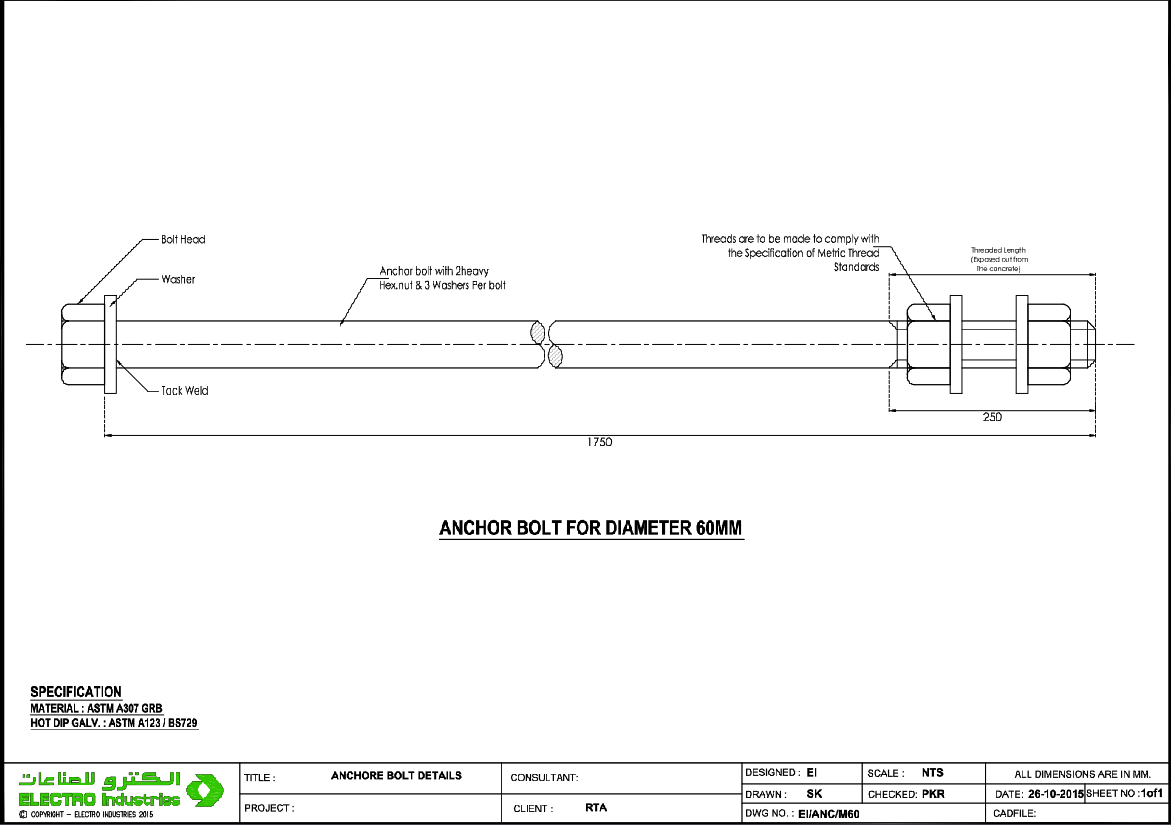

This AutoCAD DWG drawing provides a precise anchor bolt detail prepared for structural and foundation applications. The drawing illustrates a 60mm diameter anchor bolt with a total length of 1750mm, including a clearly marked threaded portion of 250mm exposed above the concrete level. The detail identifies key components such as bolt head, washer arrangement, tack weld position, and heavy hex nut configuration with three washers per bolt. All dimensions are defined in millimeters, ensuring clarity for fabrication accuracy and on-site installation alignment. The drawing layout supports easy interpretation for engineering coordination and construction detailing.

Material and surface protection specifications are clearly mentioned in the drawing, with the anchor bolt defined as ASTM A307 Grade B material and hot dip galvanizing as per ASTM A123 and BS 729 standards. These specifications help ensure strength, durability, and corrosion resistance in structural connections. The DWG file is suitable for architects, civil engineers, structural designers, builders, and CAD professionals working on foundation bolts, base plate connections, and industrial or building structures. The detailed annotation and clean drafting style make this drawing useful for design review, shop drawings, and execution level documentation where dimensional accuracy and material clarity are critical.
