Residential House Plan Sections Elevation And Roof Layout DWG

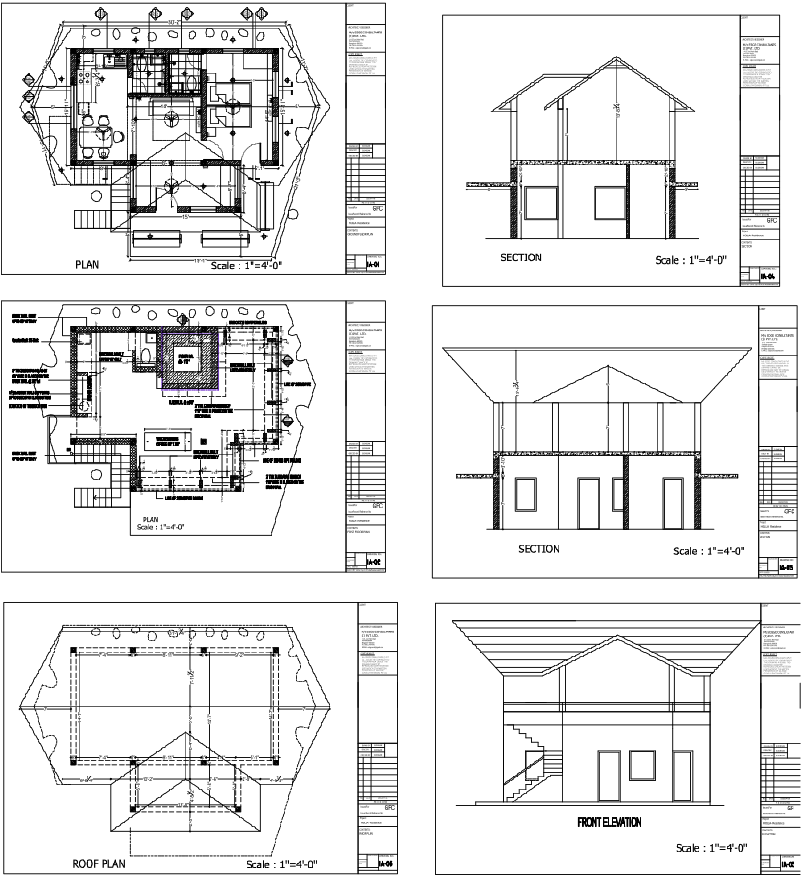

 This AutoCAD DWG file presents a complete residential house design with a detailed ground floor plan, first floor plan, roof plan, sectional drawings, and front elevation. The layout clearly shows room dimensions, wall thickness, staircase placement, door and window openings, and circulation planning based on a scale of 1 inch equals 4 feet. The plan includes living areas, bedrooms, a kitchen, sanitary spaces, and internal movement with accurate measurements marked throughout the drawing.

The sectional drawings illustrate floor heights, roof slope, structural wall alignment, and internal level differences for proper construction understanding. The roof plan defines ridge lines, overhang projections, and overall roof geometry, while the elevation provides a clear exterior view of the residential structure. This drawing is suitable for architectural planning, residential construction, coordination, and interior layout reference with precise CAD detailing for professional use, and aligns well with detailed apartment CAD drawings that include wall sections, floor layouts, and coordinated residential planning documentation.
