Industrial Warehouse Steel Structure AutoCAD DWG with Roof Layout

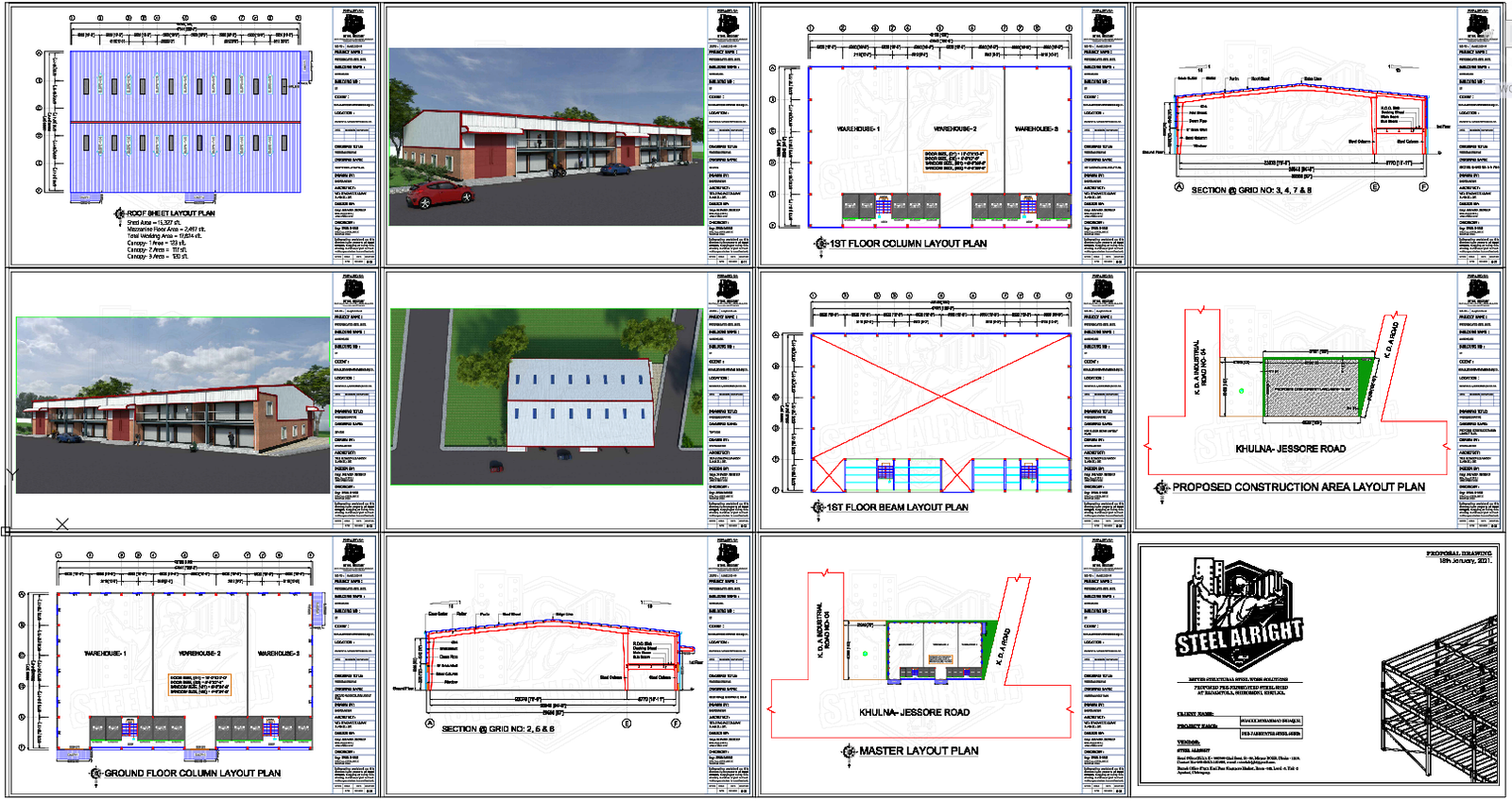

This AutoCAD DWG file provides a complete industrial warehouse steel structure design package prepared for planning, coordination, and construction use. The drawing set includes ground floor and first floor column layout plans, beam layout plans, roof sheet layout plans, and detailed sectional views across defined grid lines. The warehouse layout shows multiple bays with a clear span arrangement, structural grid spacing, column positioning, and internal zoning suitable for storage and industrial operations. Roof sheet layouts indicate sheet directions, skylight positions, canopy areas, and overall roof coverage with working areas measured in square feet. Accurate dimensions, grid references, and structural annotations are provided to support precise execution.

The drawings also include master layout plans, proposed construction area layouts, and elevation views with finished building heights, roof slopes, cladding profiles, and access points. Visual 3D perspectives and top views help in understanding building massing, vehicular movement, and site context along the Khulna Jessore Road frontage. Structural sections illustrate column heights, beam depths, roof truss profiles, and foundation coordination. This AutoCAD DWG warehouse drawing is ideal for architects, civil engineers, builders, and steel structure consultants who require detailed, editable CAD files for industrial building design, approvals, fabrication reference, and construction coordination using AutoCAD, Revit, 3D Max, and SketchUp workflows.
