Front Compound Wall Plan and Elevation with Levels and Gate Details

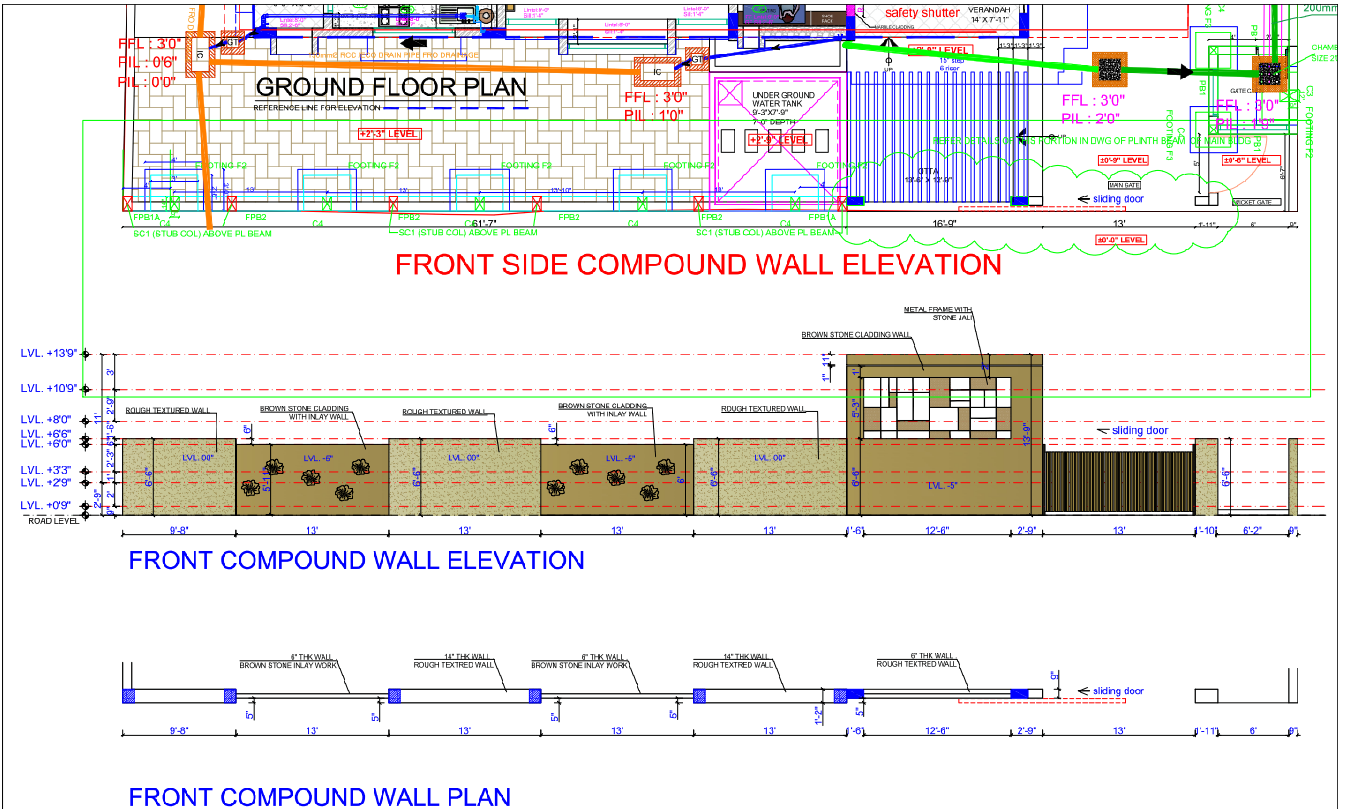

This AutoCAD drawing presents a detailed front compound wall layout, including ground floor reference alignment, wall elevation levels, gate positioning, and footing locations. The drawing clearly illustrates surface finishes such as stone cladding, rough-textured wall treatment, and metal gate elements. Structural alignment is supported through grid references, level markings, and section indicators, making it suitable for professional execution under Architecture and Construction documentation standards.

The drawing also includes plan views and elevation views with precise measurements for wall thickness, footing depth, column placement, and plinth beam coordination. Gate cabins, sliding gate zones, and boundary transitions are accurately defined to support site implementation. Technical clarity is maintained through annotations and dimensional consistency, aligning the drawing with Structure coordination and detailed requirements for compound wall construction projects.
