Galvanized Support Pole Detail Drawing With Dimensions AutoCAD

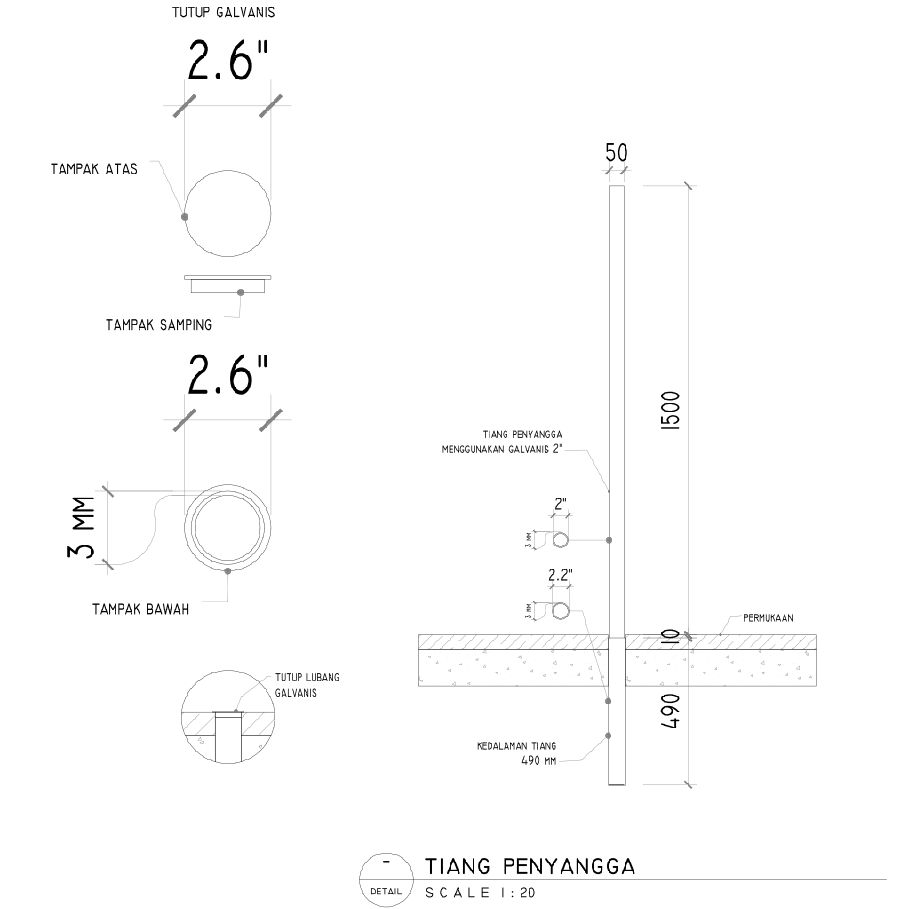

This AutoCAD drawing shows a detailed galvanized support pole construction detail prepared for on-site installation reference. The drawing clearly illustrates the top view, side view, and bottom view of the support pole with precise dimensional information. A 2.6-inch galvanized pipe with 3 mm thickness is specified, along with protective galvanized caps and hole covers. The vertical height of the pole is shown as 1500 mm above surface level, while the embedded depth is detailed as 490 mm below ground. Sectional representation explains surface-level alignment and fixing conditions. This drawing supports technical documentation used in Construction Details, where accurate component sizing and installation clarity are required for execution work.

The support pole detail drawing is useful for engineers, contractors, and site supervisors involved in small structural and service installations. It helps verify pipe diameter, material thickness, fixing depth, and surface connection without ambiguity. The drawing can be coordinated with Architectural Detail Drawings to maintain consistency between design intent and construction output. It also aligns with Interior Details and external service layouts where galvanized support elements are required. This drawing is suitable for fabrication reference, installation checking, and preparation of construction documentation for projects requiring precise support pole detailing.
