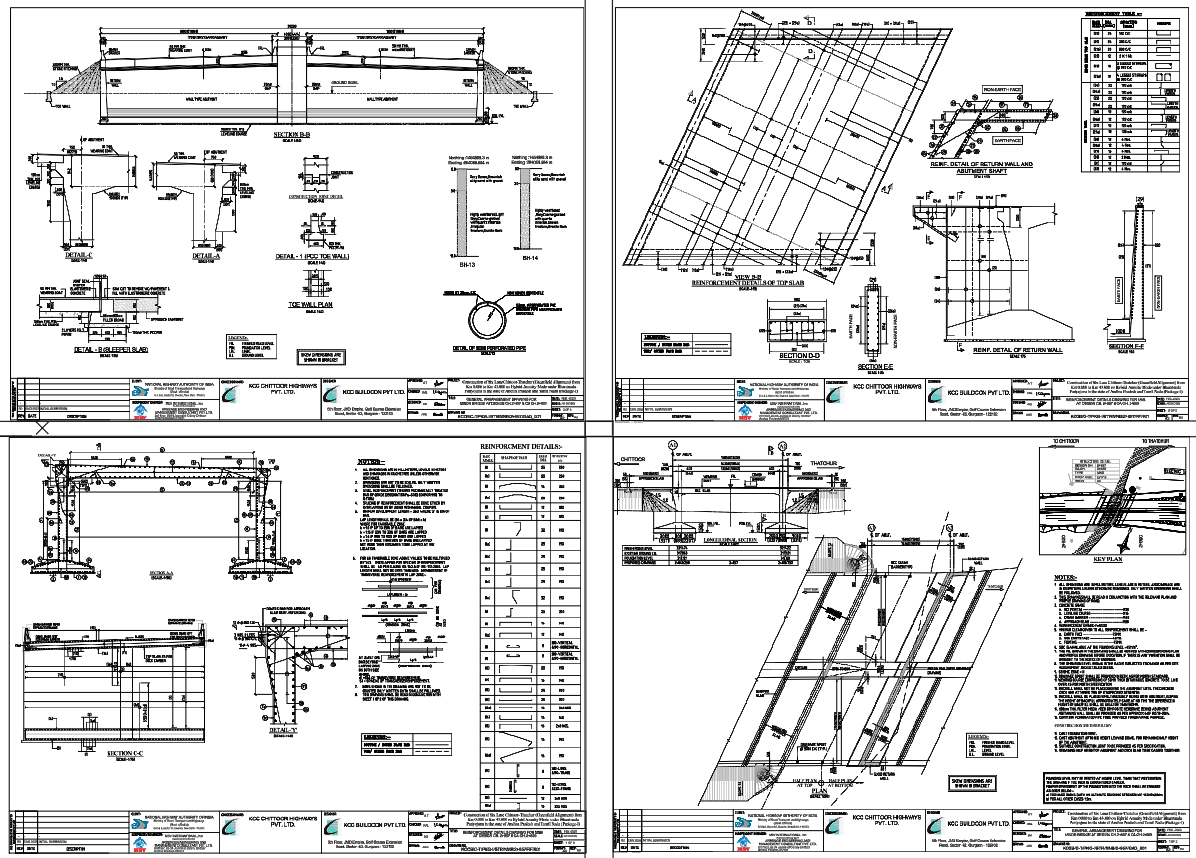

RCC Bridge Return Wall and Slab Reinforcement Details Drawing

This AutoCAD DWG drawing presents detailed RCC bridge return wall and slab reinforcement details prepared for highway and infrastructure construction. The drawing includes plan views, longitudinal sections, cross sections, and reinforcement layouts for reinforced concrete slabs and return walls. Clear dimensions, levels, slopes, and structural offsets are shown for accurate execution on site. Reinforcement detailing covers main bars, distribution bars, stirrups, spacing patterns, bar bending shapes, and schedules with standard bar diameters such as 10 mm, 12 mm, 16 mm, and 20 mm as indicated. Concrete thicknesses, wall heights, footing widths, and slab spans are clearly marked in millimetres to support precise structural coordination and quantity estimation. The layout also illustrates construction joints, bearing zones, and edge conditions for proper load transfer and durability.

Additional drawings in this file show reinforcement details of sloped slabs, sectional elevations, toe wall details, and return wall foundations with exact offsets and alignment references. Notes and reinforcement tables provide technical guidance for placement, cover requirements, and standard construction practices. The drawing is suitable for architects, civil engineers, and infrastructure consultants who require accurate RCC detailing for bridges and highway structures. This AutoCAD DWG file supports professional planning, design validation, and construction documentation workflows across AutoCAD, Revit, and other CAD-compatible platforms.
