Private Villa Roof Waterproofing Details AutoCAD DWG Scale 1:10

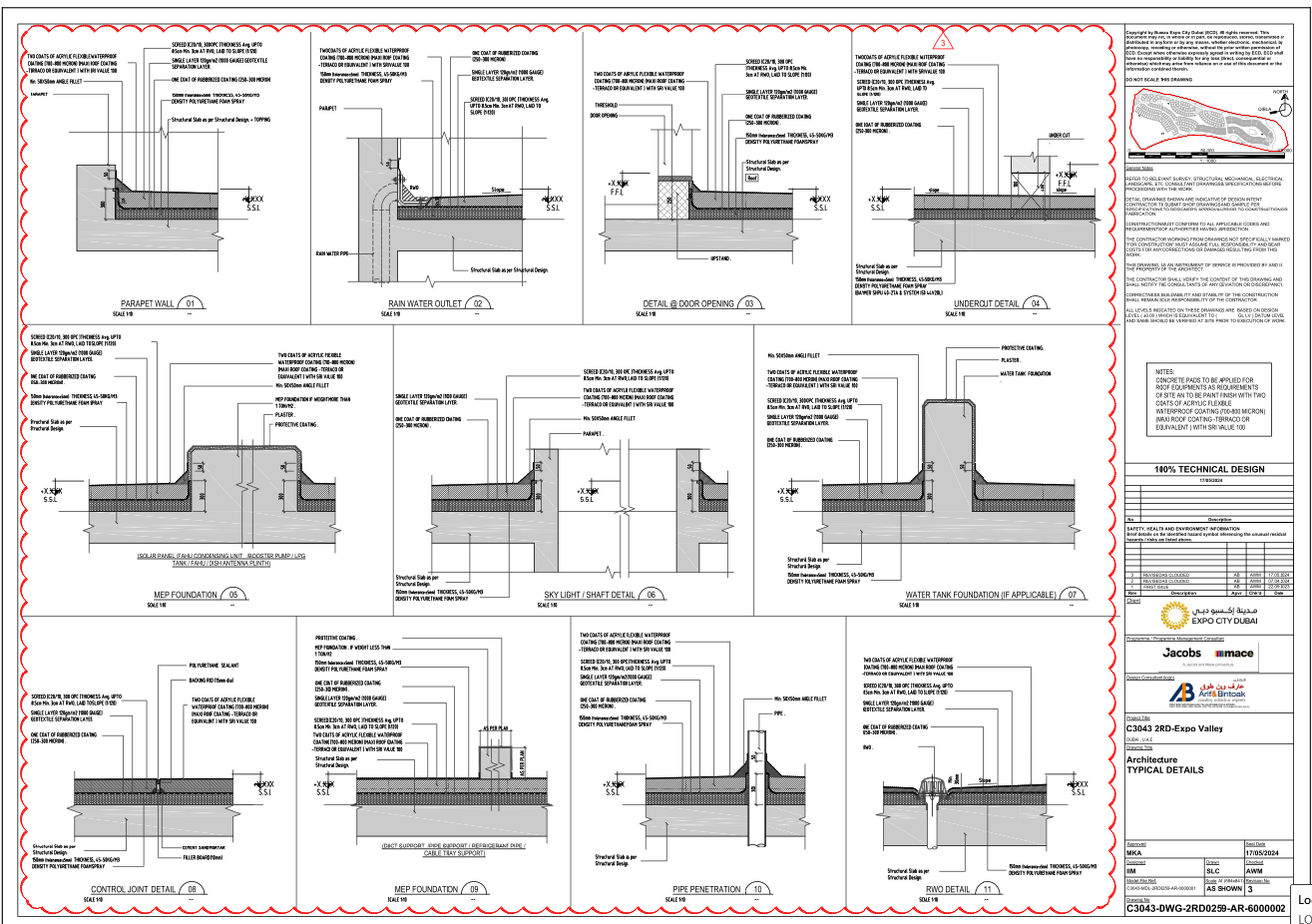

This AutoCAD DWG drawing file contains comprehensive private villa roof waterproofing and construction details prepared at a 1:10 scale for technical execution. The drawing set includes parapet wall detail, rainwater outlet detail, door opening threshold detail, undercut detail, MEP foundation details for loads above and below 1 ton per square meter, skylight and shaft detail, water tank foundation detail, control joint details, pipe penetration detail, and RWO detail. The roof build-up is clearly defined with screed C20 10 using 300 OPC with an average thickness up to 8.5 cm and a minimum of 3 cm at the rainwater outlet laid to slope 1:120. Waterproofing layers include two coats of acrylic flexible waterproof coating of 700 to 800 micron thickness with an SRI value of 100, one coat of rubberized coating of 250 to 300 micron, a single-layer 120 gsm geotextile separation layer of 1000 gauge, and 150 mm-thick polyurethane foam spray with a density of 45 to 50 kg per cubic meter.

Structural slab is shown as per structural design with angle fillets minimum 50 by 50 mm, upstands, protective coating, plaster, backing rod of 15 mm diameter, and polyurethane sealant. This private villa roof detail AutoCAD DWG file is suitable for architects, civil engineers, and construction professionals for accurate roof detailing and execution drawings.
