Surface Water Penstock Chamber Drawing AutoCAD DWG With 2000 mm RCP

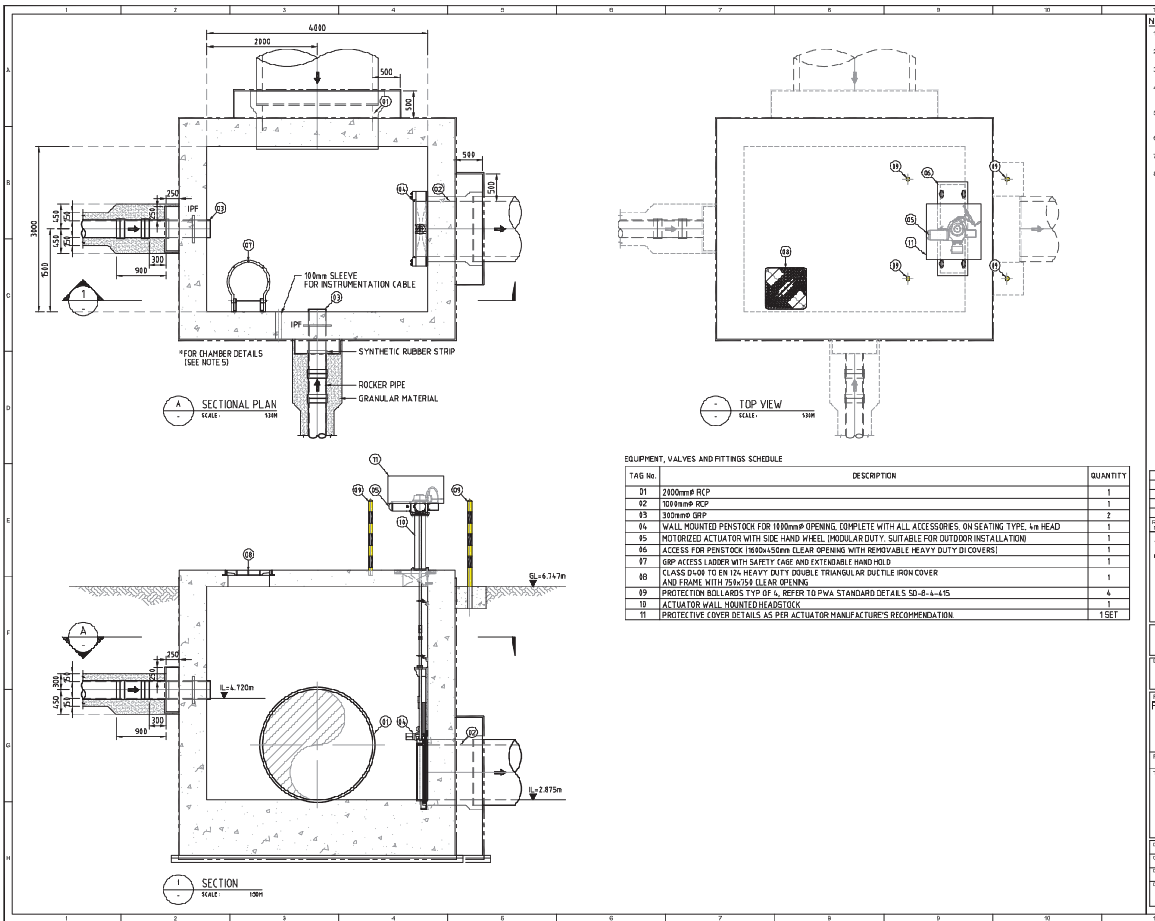

This AutoCAD DWG drawing presents a detailed surface water penstock chamber design prepared for infrastructure and municipal drainage projects. The drawing set includes a clear sectional plan, top view, and multiple section views illustrating a reinforced concrete chamber with internal clear dimensions of 4000 mm length. The layout accurately defines pipe alignment and hydraulic connectivity, featuring 2000 mm RCP and 1000 mm RCP pipe sizes integrated within the chamber. A wall-mounted penstock arrangement for a 1000 mm opening is shown, complete with an actuator mechanism, side-mounted hand wheel, and modular duty installation to ensure controlled water flow management. All dimensional references, levels, and orientations are clearly marked for precise site execution.

The structural detailing highlights a rocker pipe system supported on granular material bedding, the incorporation of a synthetic rubber strip for sealing, and a dedicated sleeve provided for instrumentation cable routing. The chamber construction is detailed in RCC, with all levels referenced to the Qatar National Datum for consistency with regional surveying practices. An equipment schedule is included, listing access covers, penstock frame, protection bollards, and protective covers designed in accordance with PWA requirements and QCS 2014 standards. This surface water penstock chamber AutoCAD DWG file is suitable for drainage networks, road infrastructure developments, and municipal utility construction, making it a reliable reference for engineers, planners, and infrastructure consultants.
