Residential Roof Plan Drawing With Rainwater Flow Detail And Sizes

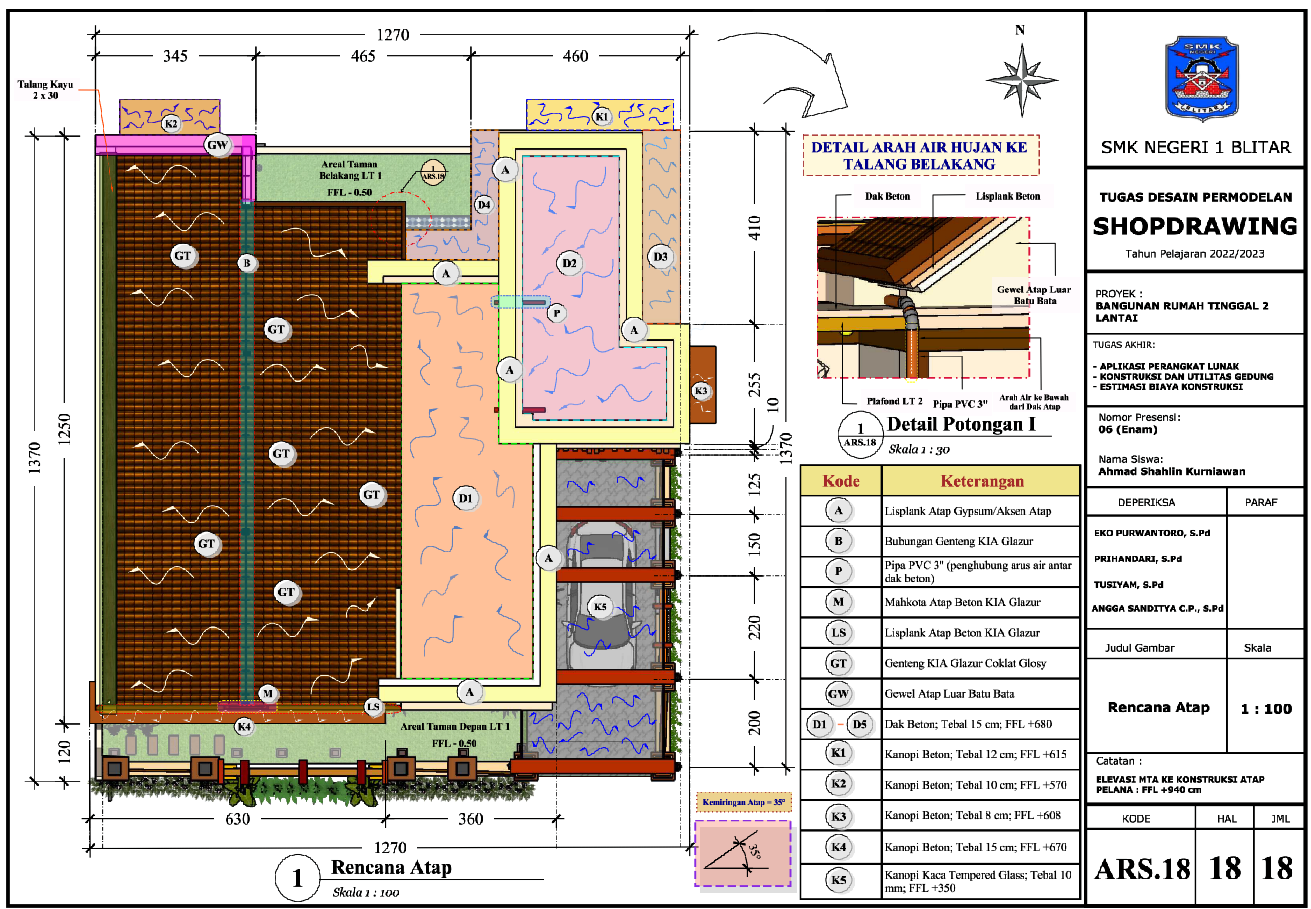

This AutoCAD DWG roof plan drawing presents a complete residential roof layout with precise dimensions and construction details. The plan is prepared at scale 1 to 100 and shows overall roof sizing of 1270 units in width with segmented lengths of 345, 465, and 460 units. The drawing clearly illustrates a roof slope at 35 degrees, wooden gutters sized 2 by 30, and rainwater direction toward the rear gutter.

A detailed section at scale 1 to 30 explains rainwater flow using a 3-inch PVC pipe connecting concrete roof slabs. Material annotations include KIA Glazur glossy brown roof tiles, concrete lisplank, brick outer gable walls, gypsum accent lisplank, and concrete roof crowns. Structural data specifies a concrete slab thickness of 15 cm with finished floor levels up to plus 680, concrete canopies ranging from 8 cm to 15 cm thickness, and a tempered glass canopy of 10 mm thickness at FFL plus 350. This DWG drawing provides clear labeling, elevation references, roof drainage direction, and architectural roof detailing suitable for construction documentation.
