Residential Ground Floor Soil Waste Water Pipe Layout 50mm 100mm

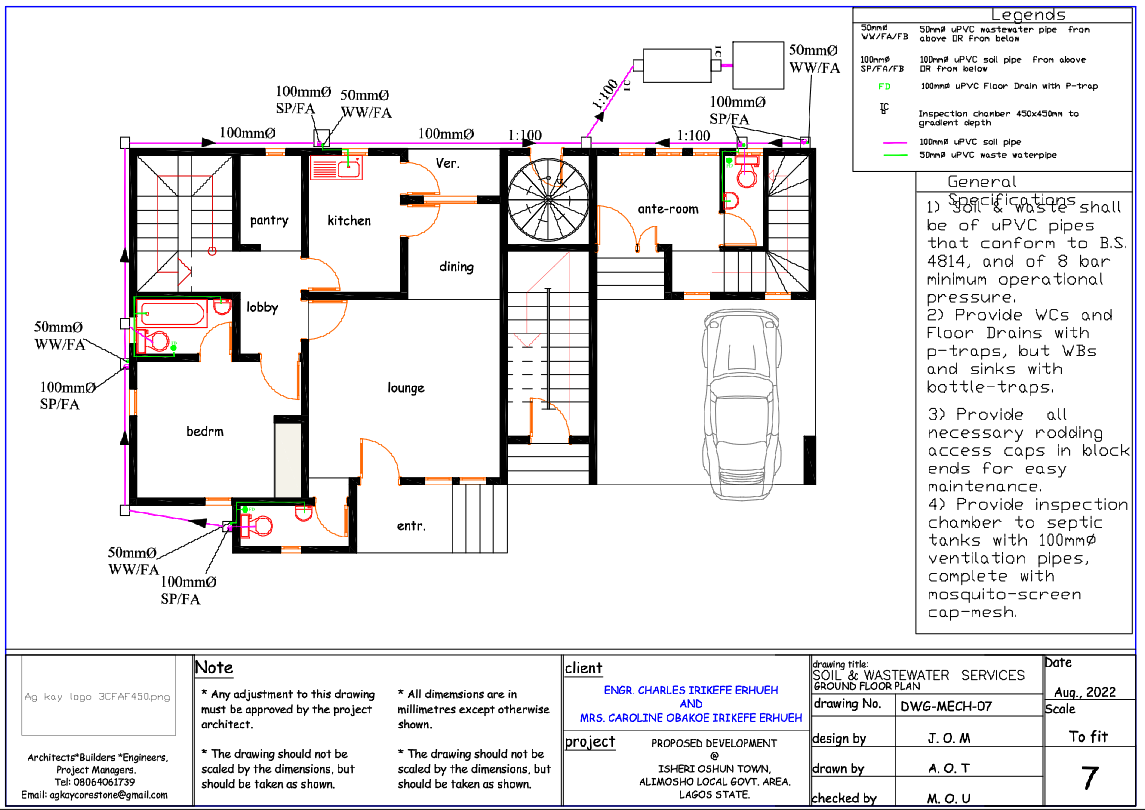

This AutoCAD DWG file presents a residential ground floor soil and wastewater pipe layout with clearly defined 50mm and 100mm pipe sizes. The drawing illustrates the detailed routing of soil pipes and wastewater lines serving spaces such as the kitchen, pantry, dining area, lounge, bedroom, lobby, entrance, anteroom, verandah, toilets, and car porch. Pipe directions, junctions, vertical drops, gradients, and connection points are accurately marked to ensure efficient drainage planning. Floor drain locations with P-traps and inspection chambers of 450 by 450 mm are clearly shown, supporting proper maintenance access and site execution.

The soil and wastewater layout drawing also includes legends and general specifications defining uPVC pipe standards, pressure requirements, rodding access caps, and inspection chamber connections to septic tanks with ventilation pipes. Drafted at a scale of 1 is to 100, the plan aligns precisely with architectural walls, doors, and circulation areas for coordinated construction detailing. This DWG file is ideal for architects, civil engineers, plumbing consultants, and builders working on residential projects. Fully editable and compatible with AutoCAD and other CAD-based software, this drawing supports accurate plumbing layout planning and professional construction documentation.
