House Service Area Interior Elevation with 12ft Height Details

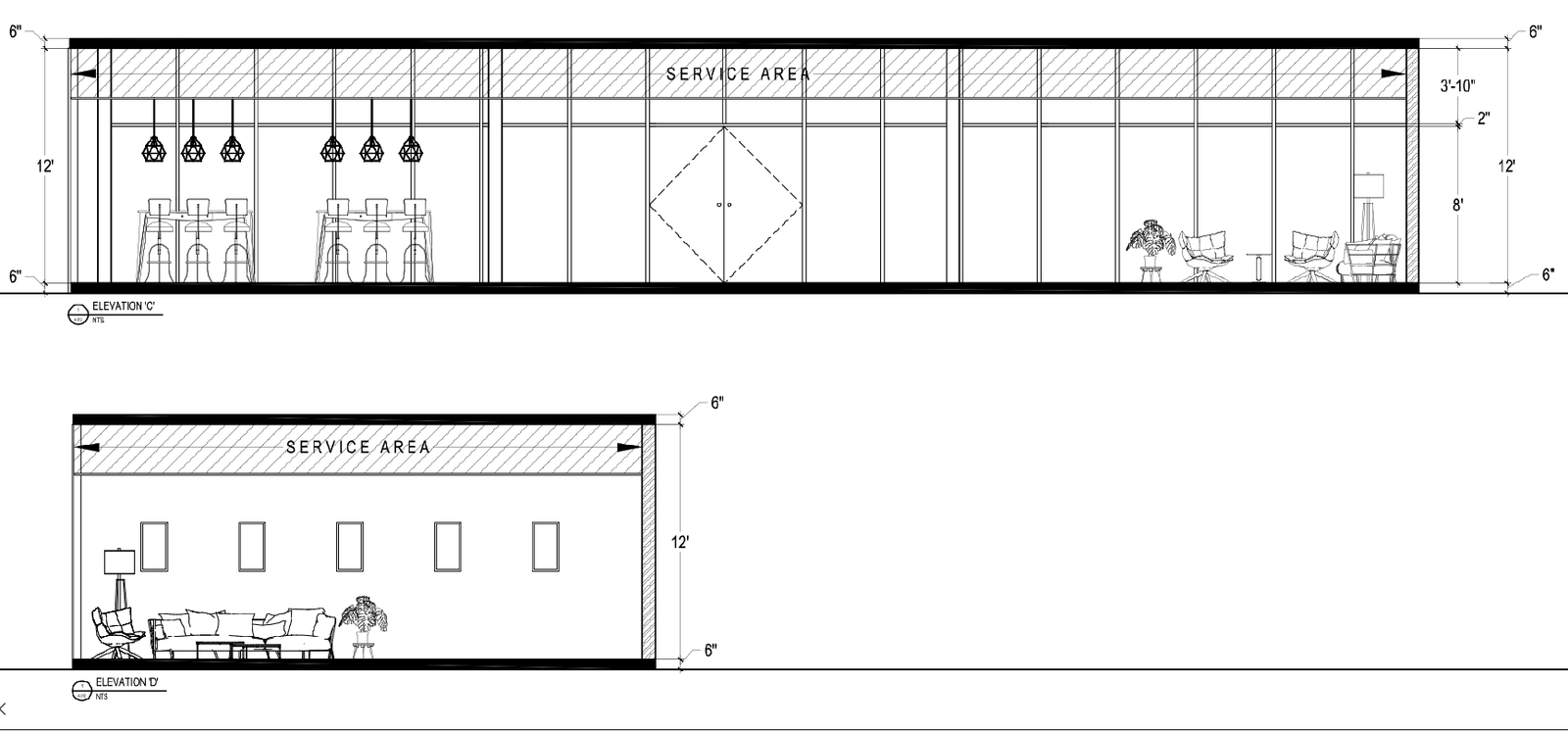

This AutoCAD DWG drawing shows detailed interior elevation views of a residential house service area, prepared for accurate interior execution and planning. The elevation illustrates a clear overall wall height of 12 feet with top and bottom structural bands measuring 6 inches each. Intermediate height zoning is defined with segments of 8 feet and 3 feet 10 inches, supporting proper alignment of wall panels, glazing sections, and service finishes. Elevation C highlights a linear service wall with vertical panel divisions, integrated lighting positions, and counter-level seating arrangements, ensuring functional spacing and balanced proportions within the house service area.

Elevation D presents a complementary wall view with consistent height control, showing furniture placement such as seating units, side tables, and wall-mounted décor elements scaled correctly to the 12-foot height. Section thicknesses of 2 inches and 6 inches are clearly indicated at junctions and edges, helping in precise fabrication and on-site installation. The service area header band is continuous across the elevation, maintaining uniformity in residential interior treatment. This drawing is useful for architects, interior designers, and site teams who need exact elevation heights, wall segmentation, furniture coordination, and service area detailing for residential interior projects.
