Ground Floor Residential Layout Plan With 26x40 Feet Two Options

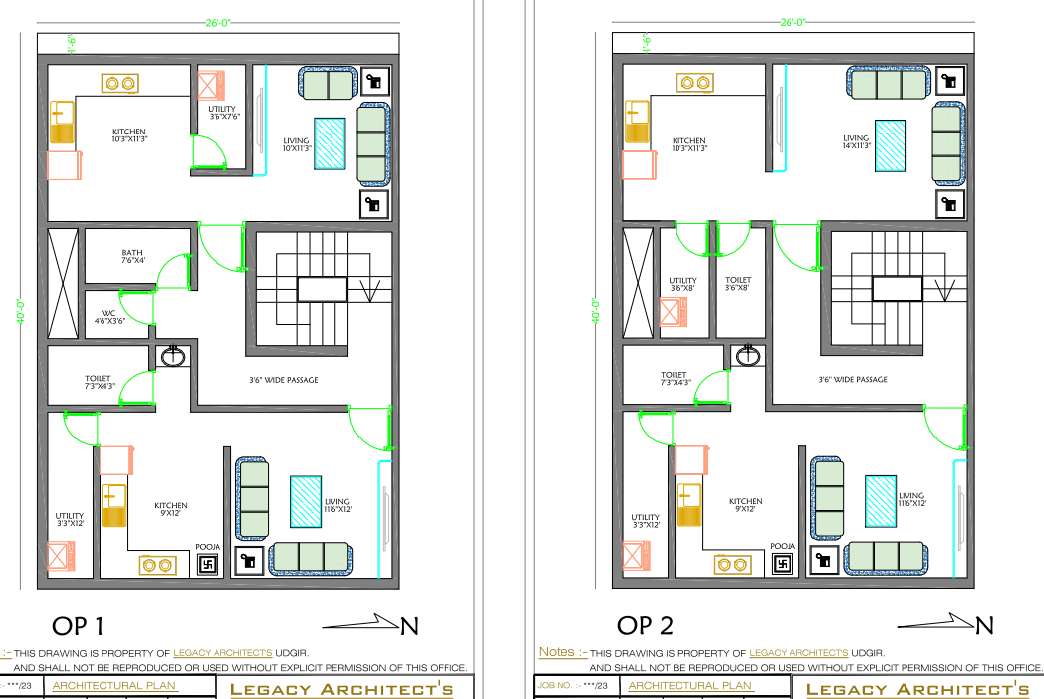

This AutoCAD DWG drawing presents a detailed ground-floor residential layout plan developed on a plot measuring 26 feet by 40 feet, showing two alternative planning options labeled OP 1 and OP 2. Both options illustrate efficient space utilization with clearly defined room sizes and circulation. The layout includes living areas measuring approximately 10 feet by 11 feet 3 inches and 11 feet 6 inches by 12 feet, providing comfortable seating arrangements. Kitchens are planned with dimensions such as 10 feet 3 inches by 11 feet 3 inches and 9 feet by 12 feet, supported by dedicated utility spaces sized around 3 feet 6 inches by 7 feet 6 inches and 3 feet 3 inches by 12 feet. Toilet and bath areas are shown separately with sizes like 7 feet 3 inches by 4 feet 3 inches, 4 feet 6 inches by 3 feet 6 inches, and 7 feet 6 inches by 4 feet, ensuring functional planning.

The drawing also highlights a 3 feet 6 inches wide central passage connecting rooms and staircase placement for vertical circulation. Pooja's space is clearly marked near the kitchen zone, aligning with residential design requirements. Door swings, wall thicknesses, and furniture layouts are indicated to support interior coordination. North direction is marked for orientation, and all dimensions are provided in feet and inches to be followed as written for construction accuracy. This ground-floor layout plan is suitable for architects, civil engineers, interior designers, and builders who require a clear residential drawing with multiple planning options, room dimensions, and practical spatial zoning for design development and execution.
