Detailed Door Window Ventilation Schedule Drawing With Sizes

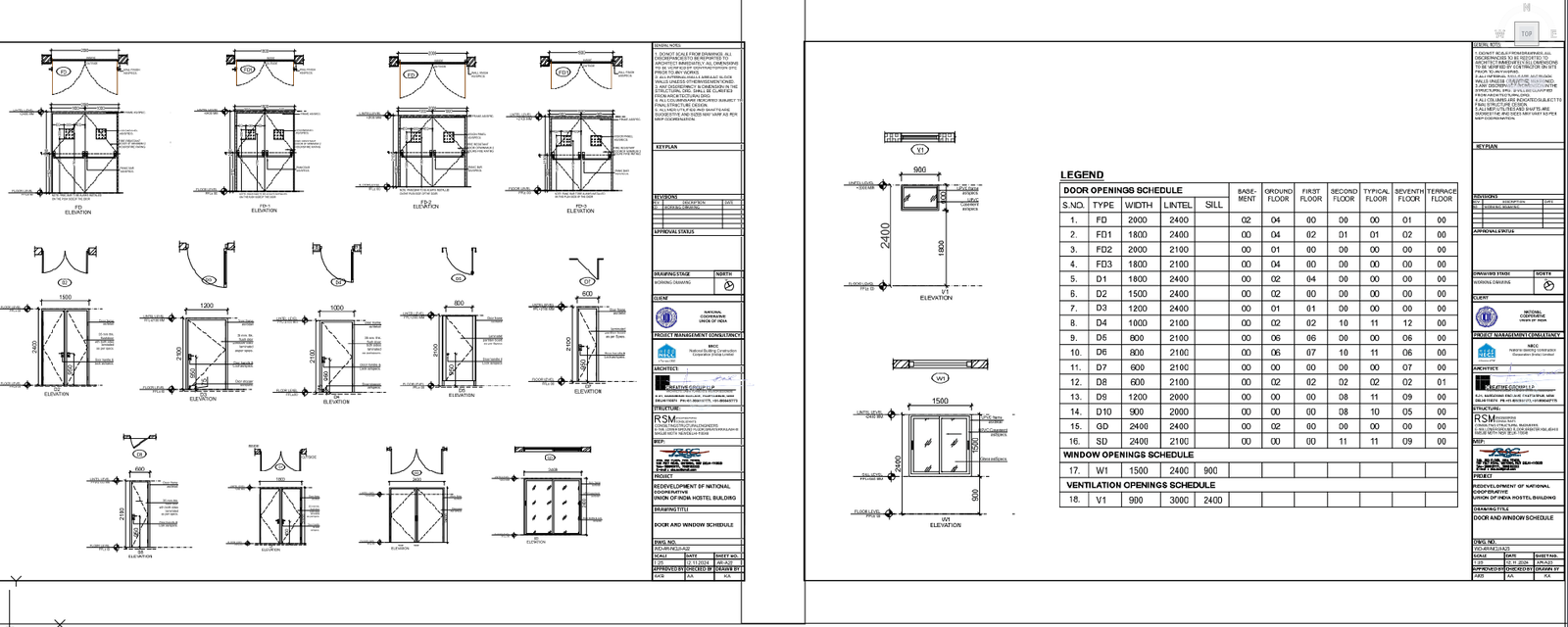

This AutoCAD drawing presents a complete door window ventilation schedule layout prepared with clear elevations, labels, and dimensional accuracy. The sheet includes multiple door types such as FD, F D1, FD,2 F, D3, D1 D2, D3 D4, D6 D7 D8 D9 D,10, and GD SD models with widths ranging from 600 mm to 2400 mm and heights from 2000 mm to 2400 mm. Each door opening is carefully listed with lintel level, sill l e, base floor, ground floor, first floor, second floor, typical floor, seventh floor, and terrace floor distribution. Swing directions, hardware positions, and frame thicknesses are shown to support architectural coordination and construction detailing.

The drawing also includes window and ventilation opening schedules with W1 window sized 1500 mm by 2400 mm and V1 ventilation opening measuring 900 mm by 3000 mm with a sill height of 2400 mm. Elevation views clearly indicate lintel levels, floor level, and overall heights for accurate site execution. This AutoCAD DWG file is suitable for architects, civil engineers, interior designers, and builders for reference in residential or institutional projects. The organized schedule format supports quantity take-off, for approval drawings, and professional documentation requirements.
