Residential House Architectural Plan With Site Section And Services

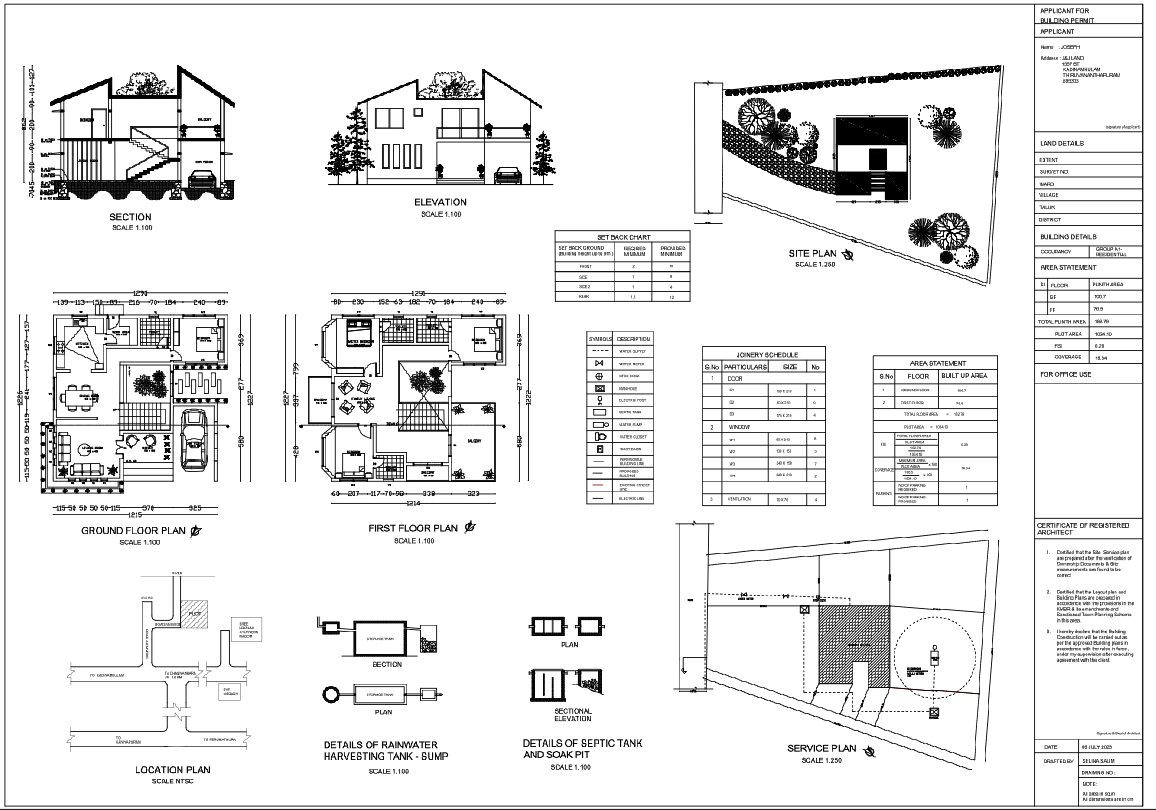

This AutoCAD drawing set presents a complete residential house architectural plan prepared for a building permit and construction reference. The sheet includes a detailed site plan at scale 1:250 showing plot boundaries, approach road widths of 5.0 m and 4.2 m, building line, setbacks, landscaping elements, and service connections. Ground floor and first floor plans are provided at scale 1:100 with clearly defined room layouts, circulation areas, stair positioning, parking spaces, and internal dimensions in centimeters. The drawing also includes elevation and sectional views at scale 1:100, illustrating floor heights, roof profile, stair levels, and structural relationships between floors.

Additional drawings include the location plan, service plan at scale 1:250, rainwater harvesting tank and sump details, septic tank and soak pit plans with sections, and joinery schedule specifying door and window sizes such as 100x210 cm, 80x210 cm, 240x150 cm, and ventilation openings. Area statement tables indicate plot area of 1034.10 sq.m, ground floor plinth area of 106.7 sq.m, first floor plinth area of 76.9 sq.m, and total plinth area of 182.79 sq.m. Setback charts, FSI value of 0.20, coverage of 18.34 percent, and parking provision are clearly documented. This residential drawing set supports planning approval, architectural coordination, and accurate construction using AutoCAD.
