Master Bedroom Balcony Wall Elevation and Furniture Layout Drawing

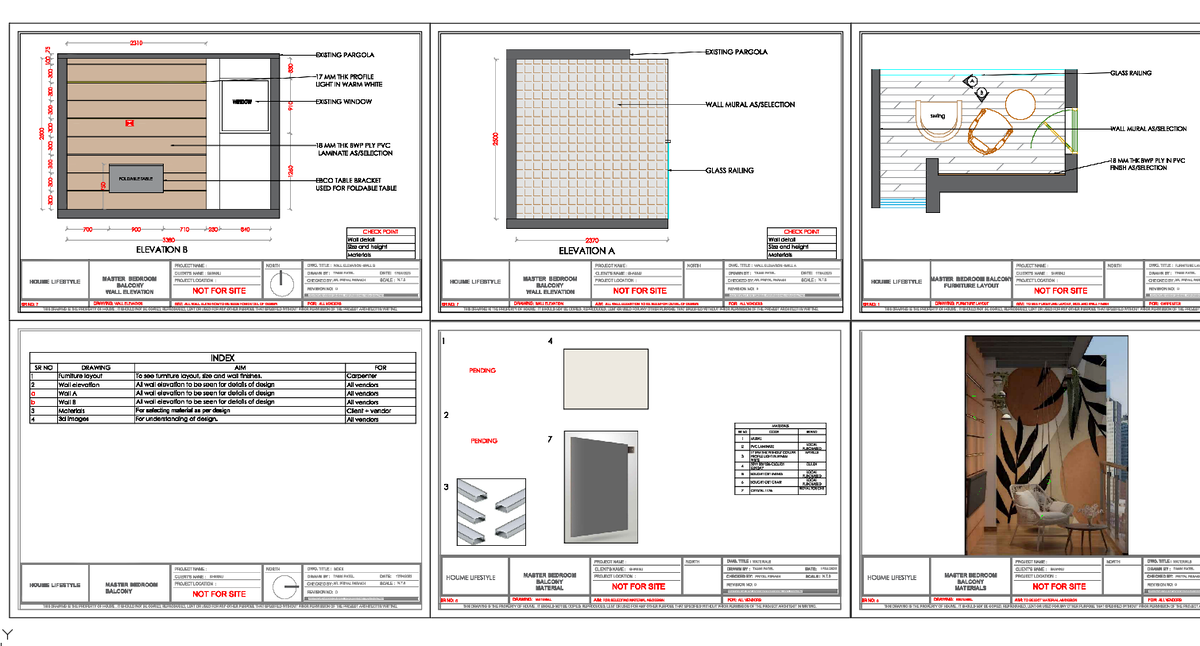

This AutoCAD drawing presents a detailed master bedroom balcony wall elevation and furniture layout, prepared with precise measurements and material annotations. The drawings include multiple wall elevations showing existing pergola alignment, window positioning, and balcony railing integration. Dimensions such as 2310 mm overall width, 2370 mm wall height, and internal spacing details are clearly marked to support accurate site execution. Material notes specify 18 mm thick BWP plywood with PVC laminate finish, mural finishes as per selection, glass railing details, and foldable table bracket positioning. Each elevation highlights alignment of windows, lighting placement with warm white profile lights, and junctions between finishes.

In addition, the file includes a balcony furniture layout plan showing swing placement, seating arrangement, and circulation clearances within the balcony area. Material reference sheets display selected finishes, profiles, and panel details for coordination with vendors. A rendered reference image is provided to visually communicate the intended balcony design outcome. The drawing index clarifies usage for carpenters, vendors, and clients, ensuring clarity in execution responsibility. This balcony AutoCAD drawing is suitable for architects and interior designers needing accurate balcony wall elevation drawings with furniture layout and material specifications for residential interior projects.
