Reflected Ceiling Plan Drawing with Gypsum Ceiling Details dwg

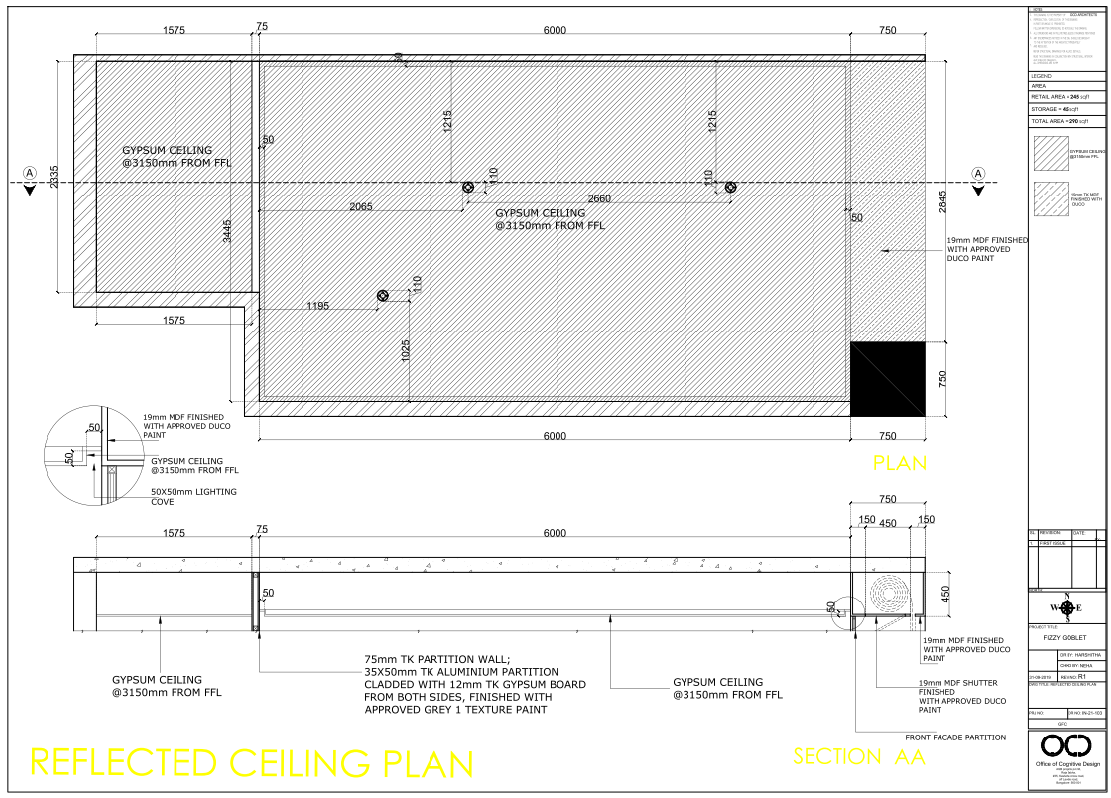

This AutoCAD DWG file presents a detailed reflected ceiling plan drawing prepared for a retail interior space with precise ceiling construction and finish specifications. The drawing clearly illustrates the gypsum ceiling layout set at 3150 millimetres from finished floor level across a total area of approximately 290 square feet, including a retail area of about 245 square feet and a storage area of nearly 45 square feet. The plan shows ceiling offsets, lighting point coordination, and a 50 by 50 millimetre lighting cove integrated along the ceiling perimeter. Section AA details reveal a 75 millimetre thick partition wall using 35 by 50 millimetre aluminium framework clad with 12 millimetre gypsum boards on both sides, finished with approved grey texture paint. MDF elements of 19 millimetre thickness finished with approved DUCO paint are highlighted for facade partitions and shutter details. All dimensions are provided in millimetres with clear plan and section references, making this reflected ceiling plan suitable for architects, interior designers, and builders using AutoCAD DWG files for interior execution and detailing.
