Gate Base and Column RF AutoCAD Drawing with Sections 1162mm

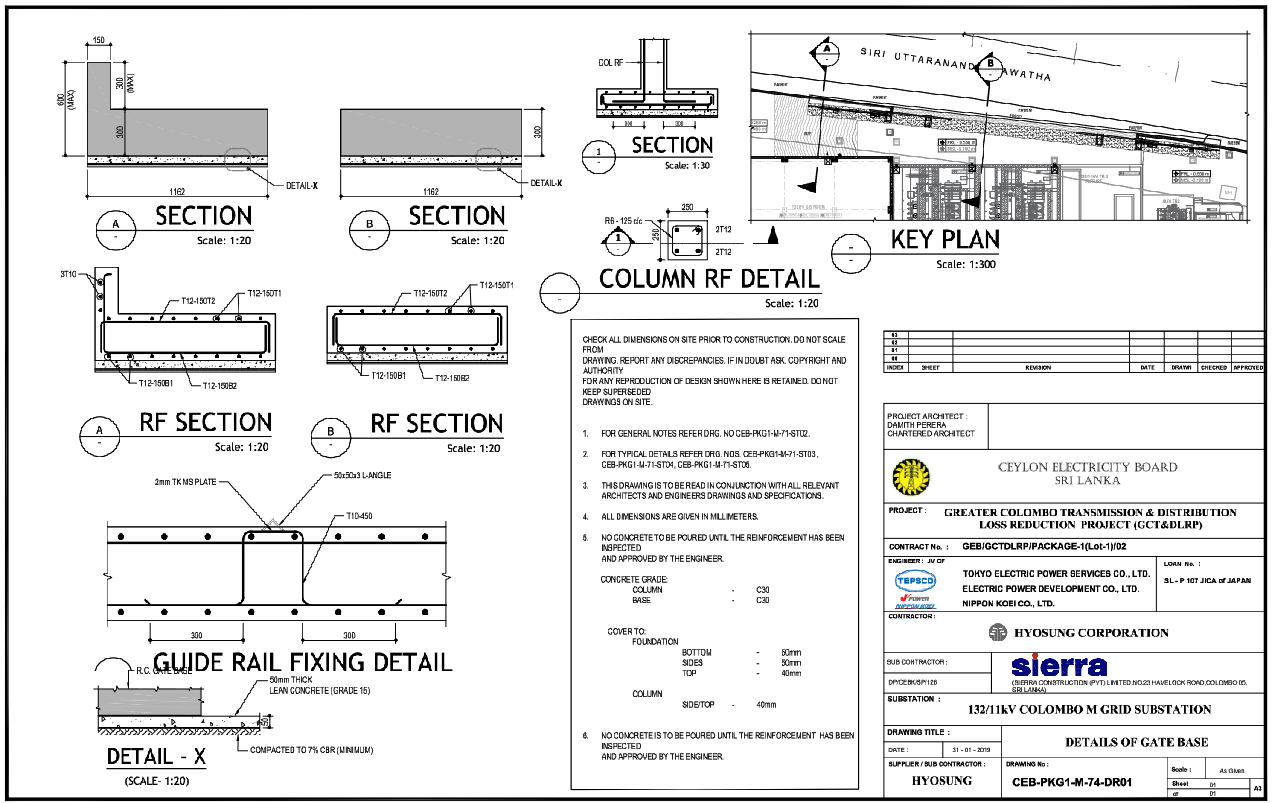

This AutoCAD drawing presents a complete gate base and column RF construction detail set prepared for professional execution. The sheet includes Section A and B at scale 1:20 with 1162mm base width, RF beam sections with T12 bars, 3T10 reinforcement, and guide rail fixing detail using 2mm MS plate, 50x50x3 L-angle, and 50mm thick lean concrete. A column RF detail shows a 250x250mm column with R6 at 125 c/c and 2T12 bars, defined at scale 1:20. The layout also contains a key plan at scale 1:300 and a sectional elevation at scale 1:30 for site coordination. Concrete grades are specified as C30 for column and base, with cover dimensions of 50mm for foundation and 40mm for column sides and top. This AutoCAD drawing is ideal for substation, industrial gate, and infrastructure projects requiring precise construction detail, accurate measurements, and engineer-approved reinforcement layouts for safe execution on site.
