Staircase Detailed Elevation AutoCAD DWG with Levels and Landing

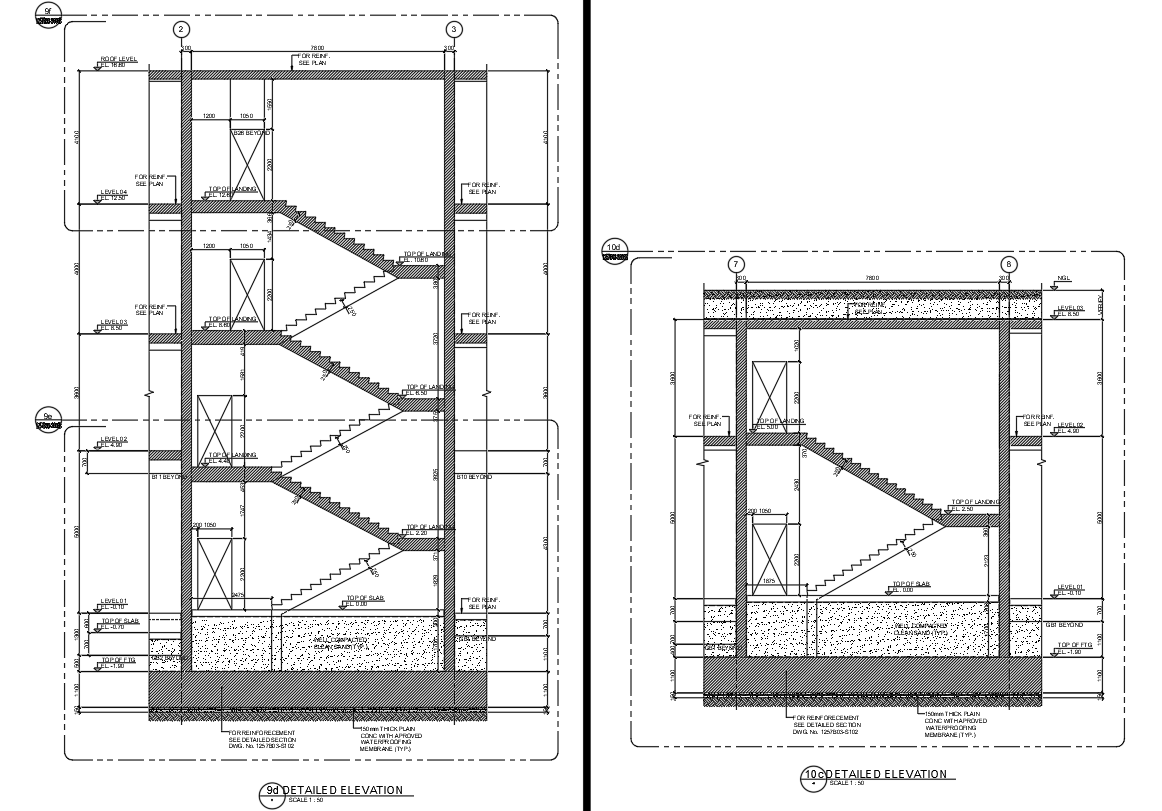

This staircase detailed elevation AutoCAD DWG drawing presents a complete vertical circulation core with structural and level coordination. The drawing shows multi-level stair flights with intermediate landings, slab and footing reference, including top of slab at 0.00 level, top of footing at minus 1.90 level,l and roof level at 16.60. It includes clear floor levels at minus 0.,10 4,.90 8.50, and 12.50 with landing levels at 2.20 6.50 10.60 and 12.60. Stair widths of 1100mm riser and tread geometry, reinforced concrete slab thickness 150mm, waterproofing membrane, well-compacted sand bed, and beam references are clearly indicated for accurate structural execution
