Mezzanine Floor HVAC Layout AutoCAD DWG Mechanical MEP Plans

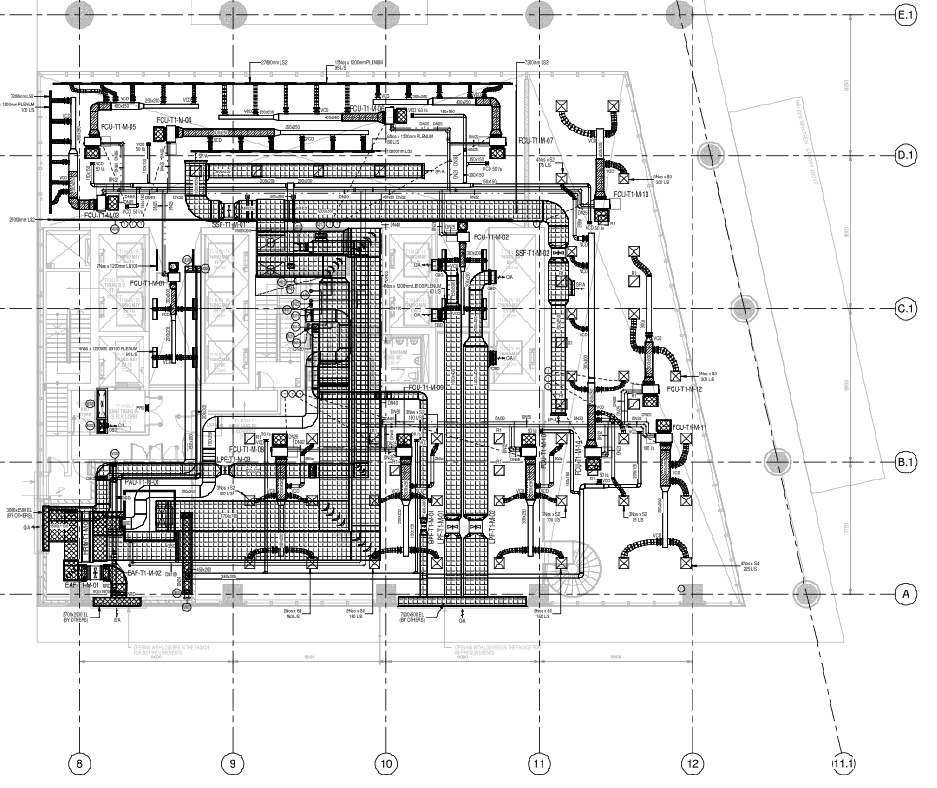

The Mezzanine Floor HVAC and Mechanical Services AutoCAD DWG Plan presents a complete MEP layout for commercial and hotel buildings with accurate technical coordination and construction-level detailing. This drawing illustrates the mezzanine floor plan at 1:100 scale with clearly marked AHU and PAU room of 60.29 square meters, service corridor of 264.74 square meters, elevator lobby, staircases, lift shafts EV-1A to EV-1N, store room, bank area, and sanitary blocks. The layout includes detailed duct routing for fresh air, exhaust air, pressure air, and spill air systems, along with chilled water pipes, condenser water pipes, and condensate drain lines ranging from DN25 to DN100. Airflow values from 50 L S to 225 L S, duct dimensions such as 1200x350 mm, 800x250 mm, 500x250 mm, and 300x200 mm, and plenum modules of 1200 mm length are accurately indicated for on-site execution.
