Partition with Door SPF 07 Bench Joinery 4145mm 3090mm 1 20 Detail

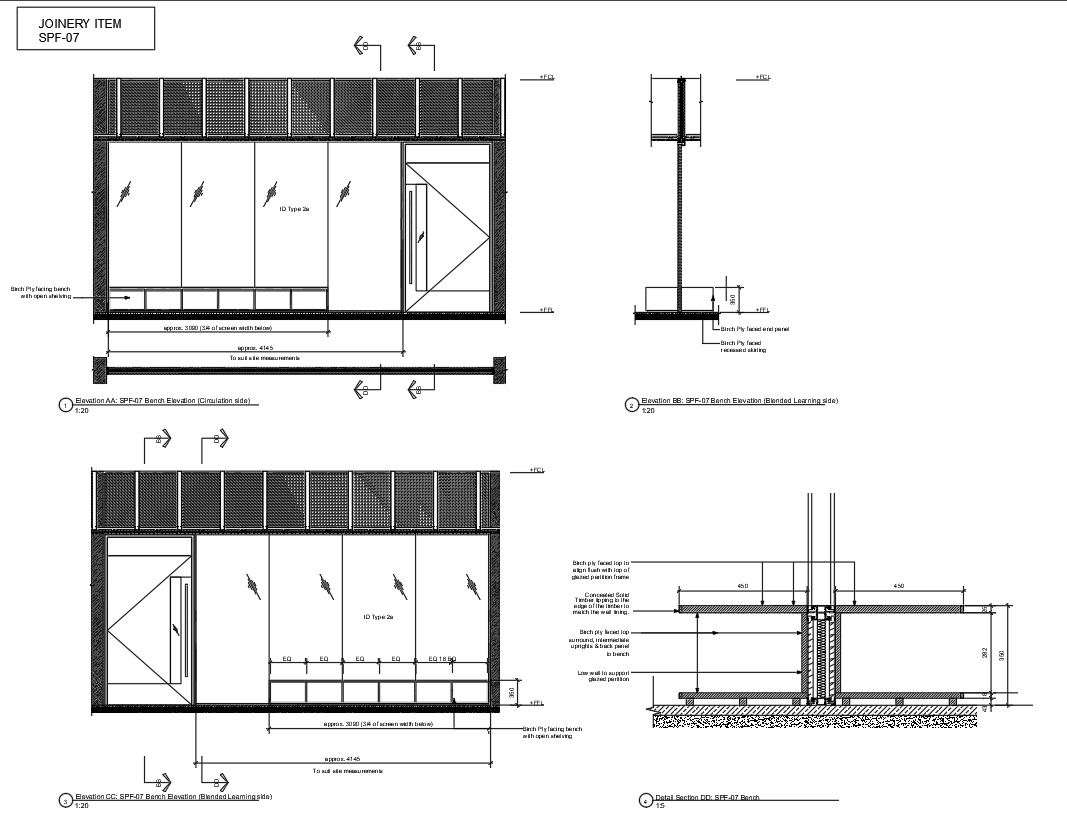

This AutoCAD DWG presents SPF 07 Bench Joinery 4145mm 3090mm 1 20 Detail for blended learning spaces at Misk School, Riyadh. The drawing includes Elevation AA circulation side and Elevation BB CC blended learning side at 1 20 scale, along with Detail Section DD at 1 5 scale. Overall bench length is approx 4145 mm with approx 3090 mm screen width below and 350 mm bench height. Section detail shows 450 mm seating depth on both sides with 282 mm structural zone and 18 mm finish zone. Birch ply-faced top aligns flush with glazed partition frame and includes concealed solid timber lipping, intermediate uprights, back panel, and recessed skirting. Low wall supports glazed partition with 43 mm and 25 mm offsets clearly dimensioned.
