Accessible Kitchen And Toilet Plan Elevation Section Details

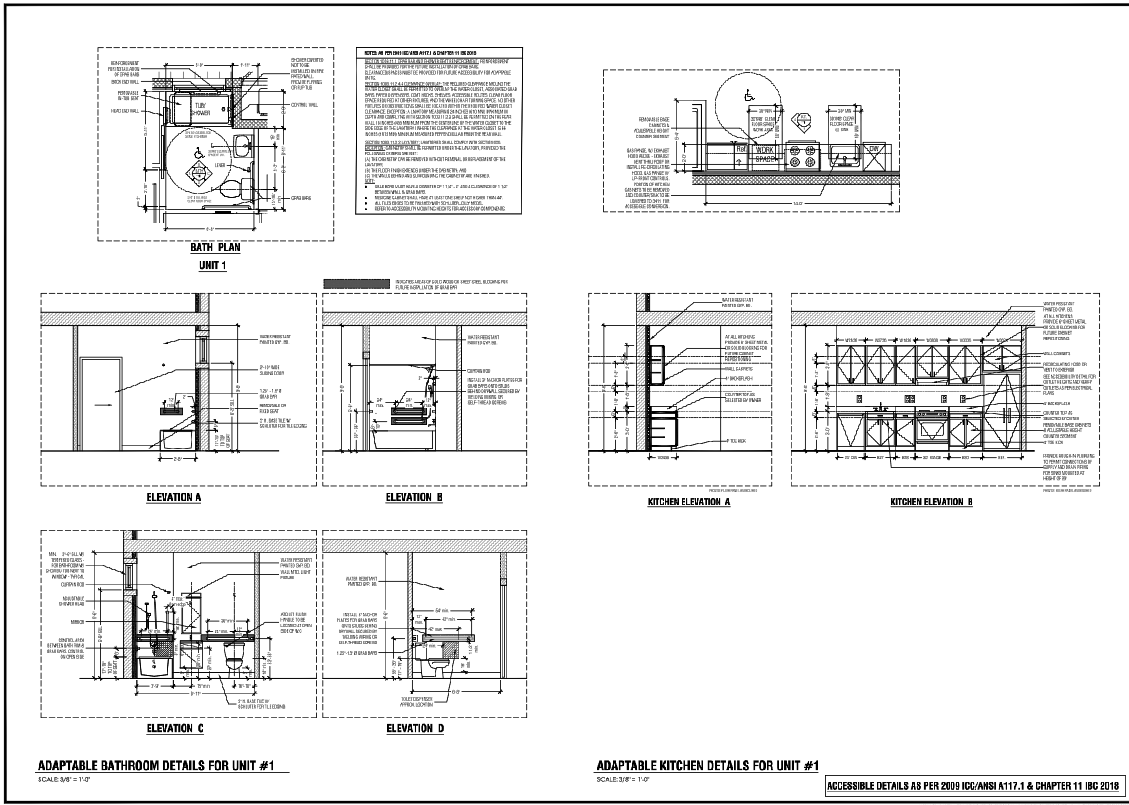

Accessible kitchen and toilet plan elevation section detail drawing showing a complete interior layout with bathroom plan for unit 1 and adaptable kitchen design including elevation views A B, C and D. The drawing presents a detailed bathroom layout with shower area, toilet placement, grab bars sink location and circulation space designed for accessible movement, approximately 5 ft turning radius as illustrated in the plan. Kitchen elevation drawings display cabinet arrangement, countertop height, storage units, work space clearance, and appliance placement with dimensional references for installation. Section and elevation diagrams indicate wall heights, plumbing fixture positions, mounting heights, and structural wall construction layers used for interior installation. The sheet also includes accessibility notes based on ICC ANSI A1171 guidelines, with detailed dimension annotations for toilet clearance, sink height, grab bar location, and kitchen work surface spacing, providing accurate architectural references for accessible kitchen and toilet construction documentation.
