Master Bathroom Toilet Detail Plan Section 3750 3975 7500 CAD Drawing

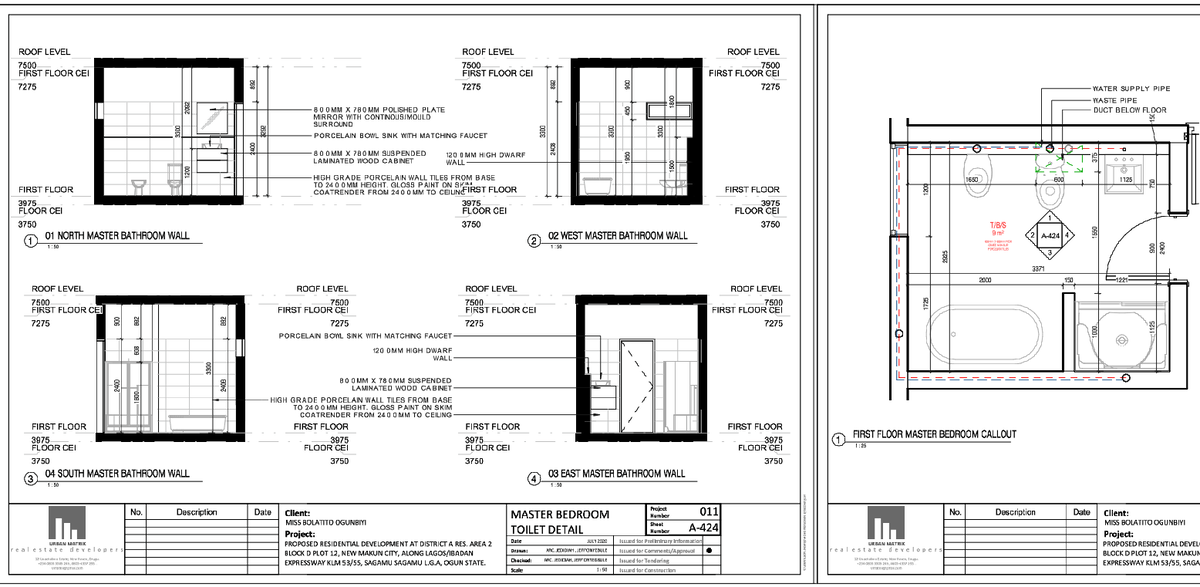

This master bathroom toilet detail plan section 3750 3975 7500 CAD drawing provides a comprehensive layout and sectional detailing of a residential bathroom space prepared for architectural and interior construction planning. The drawing includes a detailed first-floor master bathroom layout showing fixture placement such as bathtub, wash basin, toilet seat, and shower enclosure, with dimensioned spacing for proper circulation. The plan clearly illustrates wall thickness, door opening, plumbing routes, waste pipe connection, water supply pipe, and duct below floor arrangement to support accurate installation. Section drawings of north, south, east, and west master bathroom walls provide vertical construction information, including floor level at 3975 millimeters, floor ceiling at 3750 millimeters, and roof level at 7500 millimeters to guide structural coordination and bathroom interior detailing. These drawings are useful for architects and civil engineers preparing technical bathroom design documentation.
