Luxury Bungalow Plan 14800x7700 Layout DWG with Pool Garage Design

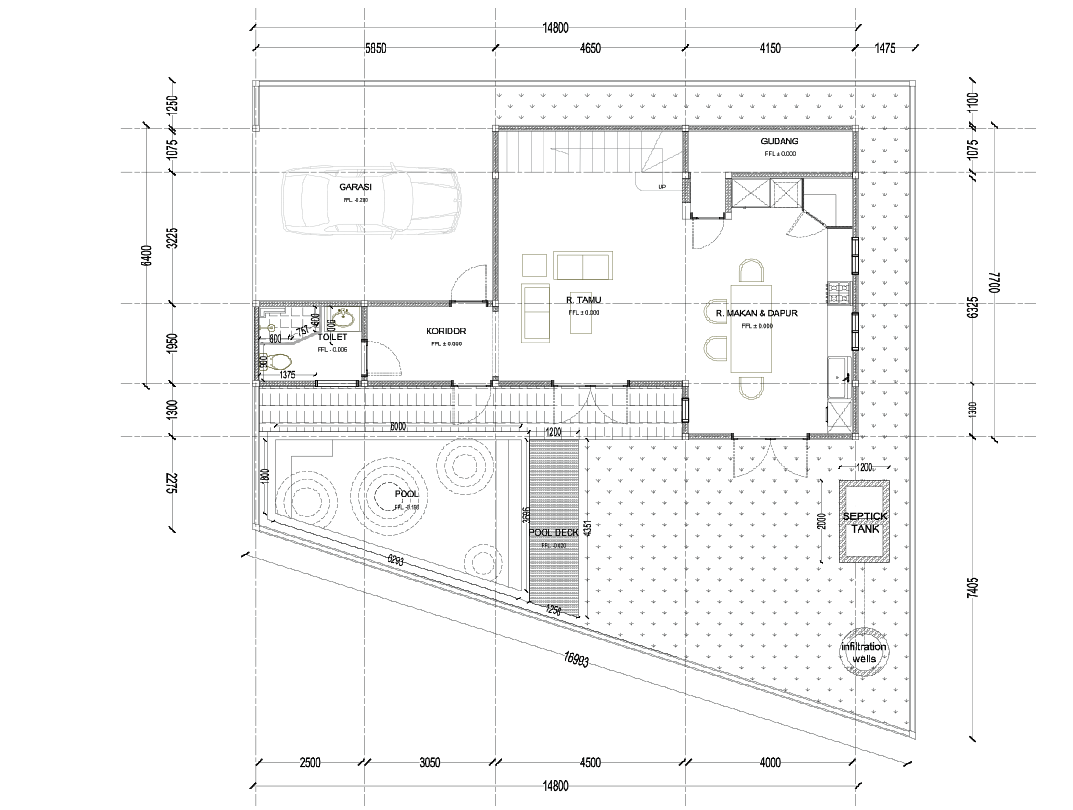

This AutoCAD DWG file presents a luxury bungalow plan with a detailed 14800 mm by 7700 mm layout, including complete spatial planning and dimensioning. The design features a well-defined garage area, living room, corridor, dining and kitchen space, and a dedicated storage room for functional residential use. A toilet block is positioned with accurate measurements and easy access from the corridor. The layout highlights outdoor luxury elements, including a swimming pool with a pool deck area and landscaped open space designed along a unique angled site boundary of approximately 16993 mm. Additional utilities, such as septic tanks and infiltration wells, are clearly marked with dimensions for construction reference. Internal dimensions such as 5850 mm, 4650 mm, and 4150 mm segments are shown for accurate planning, along with sectional widths like 2500 mm, 3050 mm, 4500 mm, and 4000 mm. This luxury bungalow plan DWG is ideal for architects, civil engineers, and designers seeking a precise AutoCAD residential layout with pool, garage, and site development details.
