Bungalow Ground Floor Plan DWG 16030x9140 Layout Parking Ramp

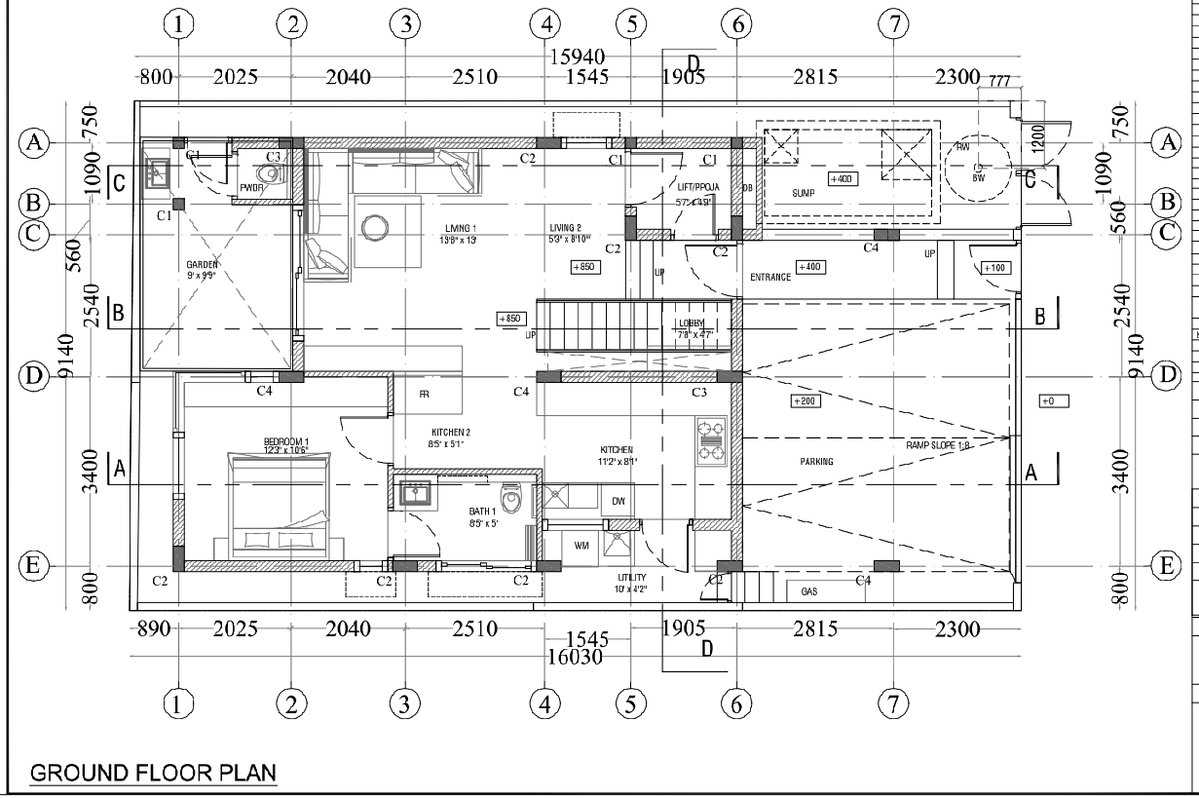

This AutoCAD DWG file illustrates a detailed bungalow ground floor plan DWG with overall dimensions of approximately 16030 mm by 9140 mm, including a complete room layout and functional zoning. The plan includes spacious living areas with Living 1 measuring 13 feet 8 inches by 13 feet and Living 2 measuring 5 feet 3 inches by 8 feet 10 inches, along with a dedicated bedroom of 12 feet 3 inches by 10 feet 6 inches. The kitchen layout includes a primary kitchen of 11 feet 2 inches by 8 feet 1 inch and a secondary kitchen of 8 feet 5 inches by 5 feet 1 inch, supported by a utility area of 10 feet by 4 feet 2 inches. Additional spaces include a bath of 8 feet 5 inches by 5 feet, a powder room, and a garden area of 9 feet by 9 feet 9 inches. The layout features a central lobby, entrance level differences marked as plus 400 mm and 100 mm, and a parking area with a ramp slope of 1 in 8 for vehicle access. Structural gridlines and dimensions such as 2025 mm, 2040 mm, 2510 mm, 1545 mm, 1905 mm, and 2815 mm ensure accurate construction planning. This bungalow ground floor plan DWG is ideal for architects and civil engineers requiring a detailed AutoCAD residential layout with parking ramp and dimension specifications.
