Commercial Floor Plan Ballroom 1245SFT Pre Function DWG File

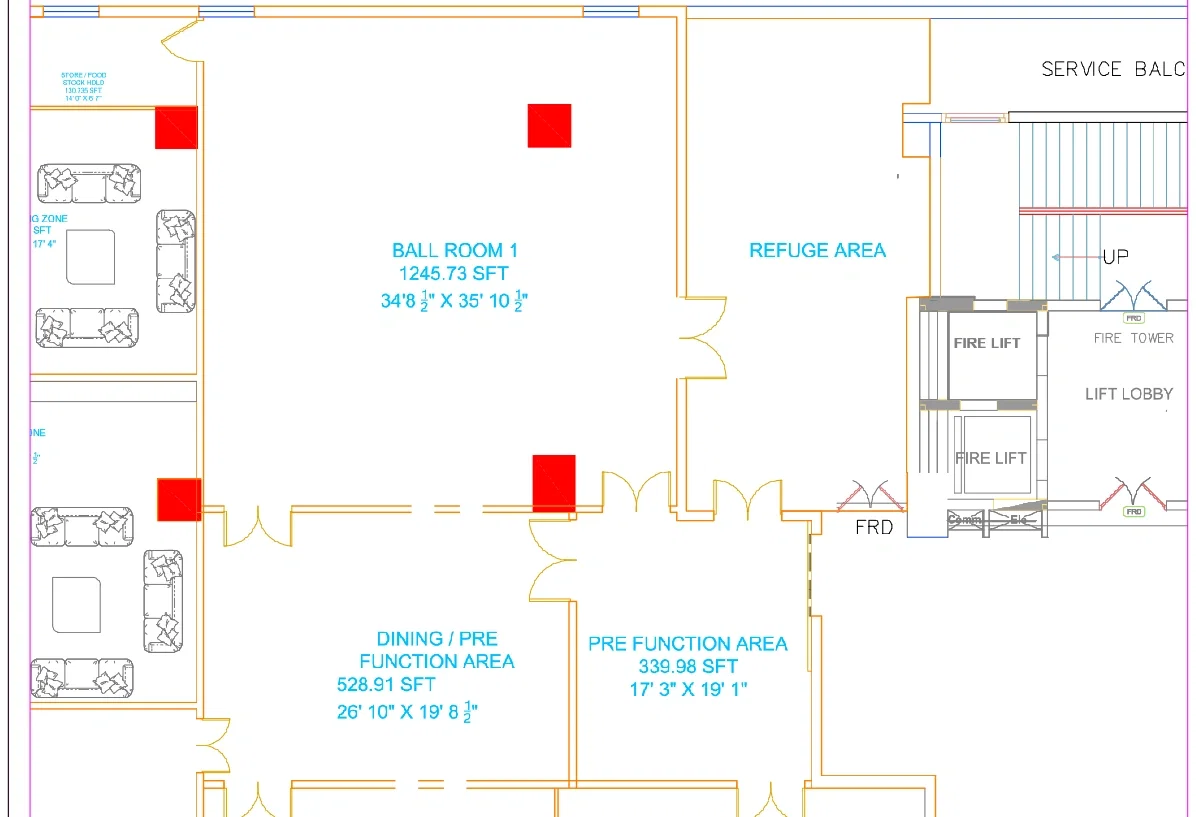

This AutoCAD DWG file presents a detailed commercial floor plan layout designed for a 6th-level business space with functional zoning and precise area distribution. The drawing includes Ballroom 1 with an area of 1245.73 SFT and dimensions of 34 feet 8.5 inches by 35 feet 10.5 inches, along with a dining pre-function area of 528.91 SFT measuring 26 feet 10 inches by 19 feet 8.5 inches. A dedicated pre-function area of 339.98 SFT, sized at 17 feet 3 inches by 19 feet 1 inch, is also included. Additional spaces such as refuge area, VIP meeting zones, and store food stock hold area of 130.735 SFT sized 14 feet 0 inches by 6 feet 7 inches are clearly defined. The plan also shows lift lobby fire lift fire tower, and a service balcony with proper circulation and entry exit points. Structural columns, partitions, and seating layout zones are marked for efficient commercial space planning. This drawing is suitable for architects and designers working on commercial interior floor layouts in AutoCAD DWG format.
